Counting machine

  • High Efficiency Candy Gummy Chocolate Packing Food Visual Counting Machine

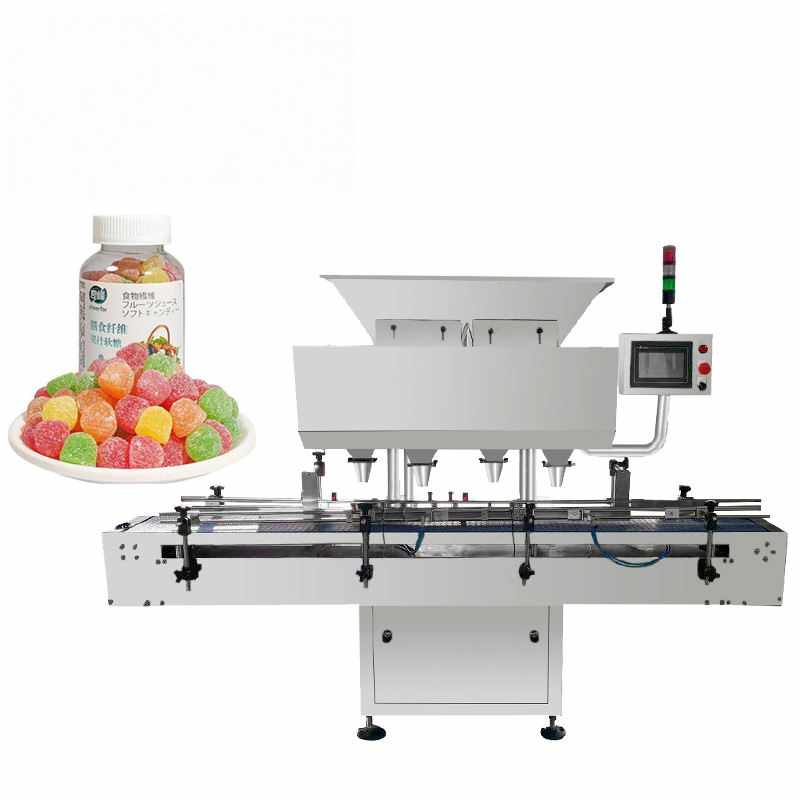

High Efficiency Candy Gummy Chocolate Packing Food Visual Counting Machine

The electronic counting machine is our newly-developed product. It features wide application range,

high production efficiency and multi-function for one-machine use.

 It is suitable for capsules, soft capsules, tablets (including special-shaped tablets), pills, candies and grain seeds.

It meets the requirements of GMP (Good Manufacturing Practice) for pharmaceutical production.

Adopting anti-high-dust photoelectric counting technology, this machine can count and dispense pills and tablets with diameter ≤20mm.

It is compatible with 000-5# capsules, soft capsules and plain tablets of 5.5-22 mm in diameter.

 It supports bottle filling, box filling and bag filling.

Fully GMP-compliant, it is ideal for research institutes, hospitals, newly-built small-scale pharmaceutical factories and health-supplement manufacturers.



Model

XLY -16TD

Applicable Materials    Pills

≤20mm; 000-5# capsules & soft capsules; plain tablets 5.5-22mm, special-shaped tablets, sugar-coated tablets

Production Speed

10-40 bottles/min

Applicable Bottle Size

Bottle Diameter: 0-100mm, Bottle Height: 0-160mm

Hopper Capacity

35L

Power Supply

220V/50Hz, 0.6KW

Air Consumption

0.4-0.6MPa, 3.5L/min

Machine Dimensions

1360×1530×1700mm

Net Weight

320KG
