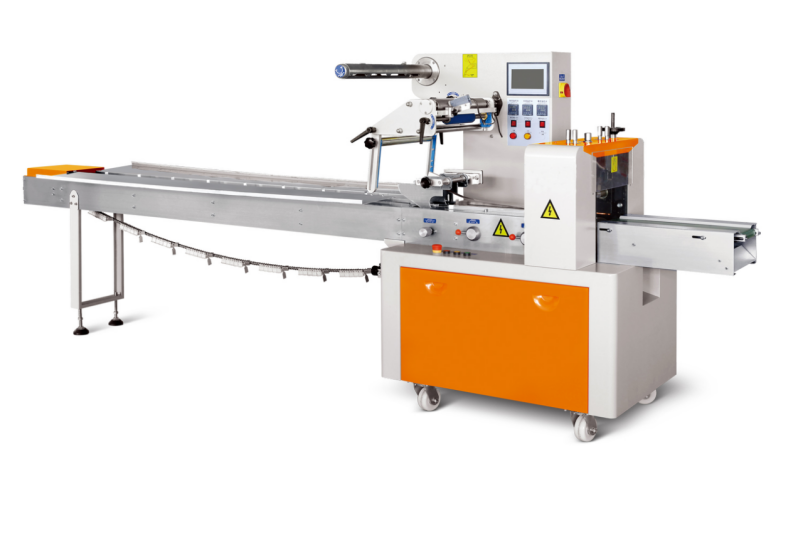

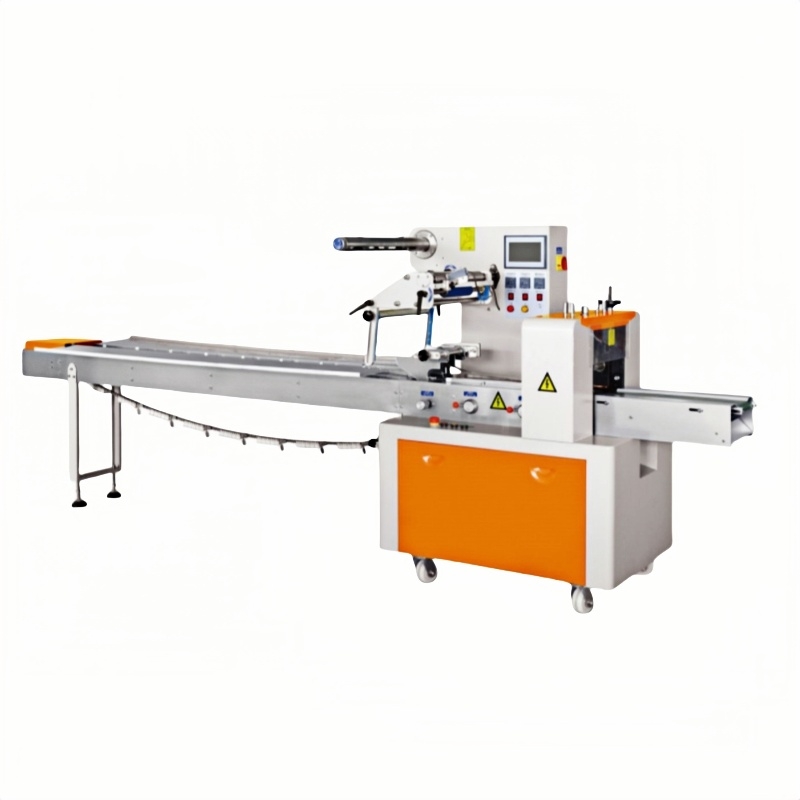

XL100 A flow packing machine
Applicable for packing various solid regular objects,such as biscuits,bread,instant noodle ice cream,moon cake,candy,medicine,hardware or loaded by box/tray….ets,any kind of products and so on.
Sealing type:
1. The bag length is free of manual setting.the equipment may auto matically detect and set the length.
2. Simplified mechanic gearing,easy to maintain.little vibration.litter wear and long life.
3. The mian control circuit takes the single chip develop oped by our own company,digital screen display and controlled by transducer.Perfect inter face between operaror and machine.integrated,direct and convenient operation.
4. The capacity and the length of bag take double frequency converter control with stepless speed shift and wide adjustment.It can match ewll with the former working procedure of production line.
5. Highly sensitive resspond photoelectric device can follow automatically and accurately.
6. Independent temperature control for each sealer to make the beautiful and tight sealing and suitable for a wide variety of flexible packing material.
Main technical data:
Model | XL-100A |
Packing speed | 35—225bag/min |
Bag size | L(65-160)mm* W(35-120)mm* H(5-35)mm |
Film width | 90—250mm |
Packing materiak | OPP/CPP、PT/PE、KOP/CPP、ALU-FOIL |
Dimension | (L)3900mm *(W)850mm*(H)1500mm |
Heat power | 2.1kw |
Motor power | 0.55+0.75kw |
Total power | 3.4kw |
Overall weight | 550kg |
