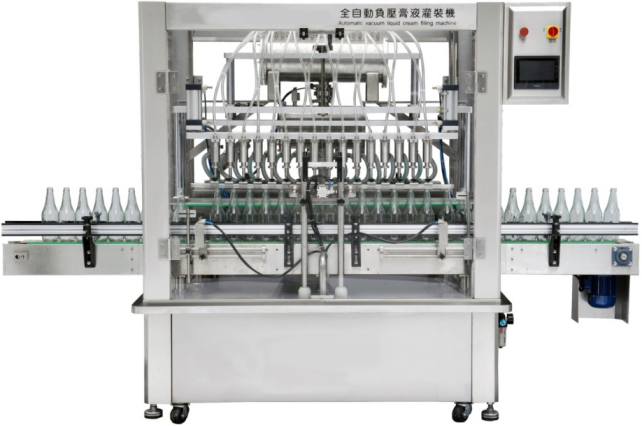

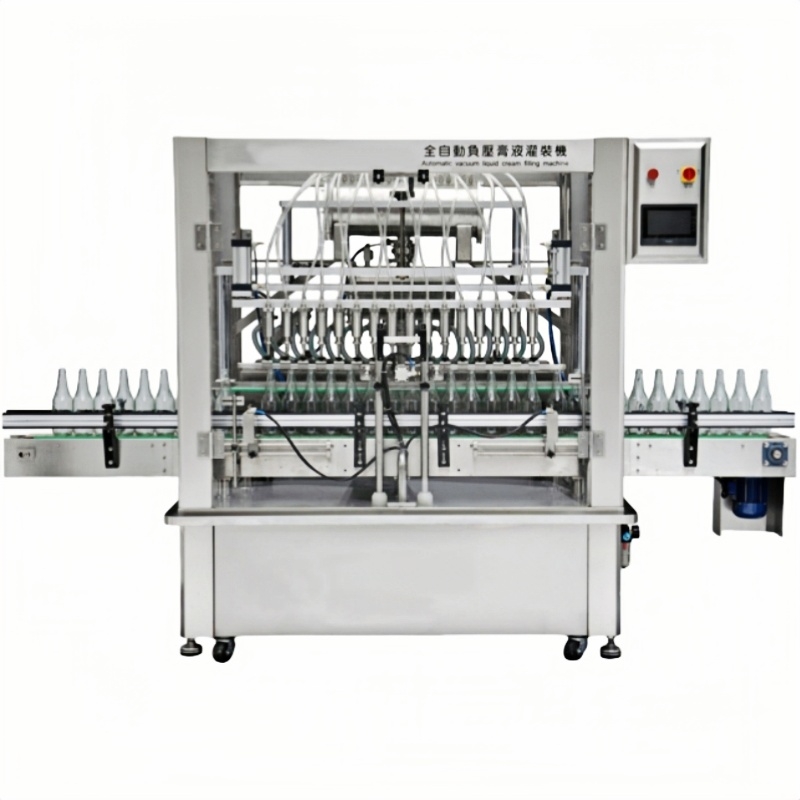

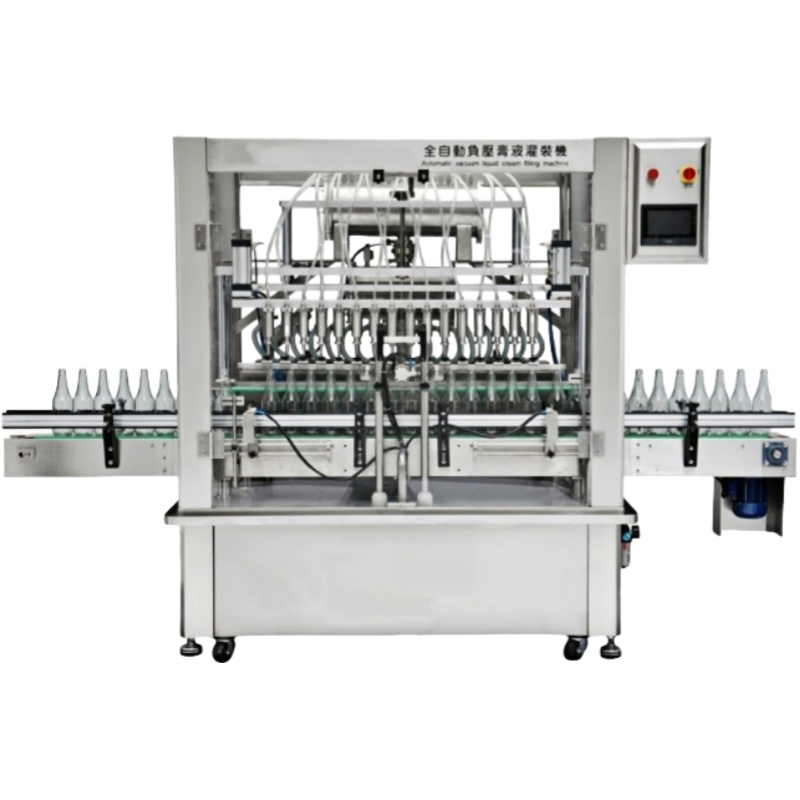

n Advanced HMI operation, PLC control;

n Vacuum negative pressure filling, compact, bubbling proof and dripping proof;

n All material contact parts are made of 316L stainless steel, and surface is made of 304 stainless steel, fully up to related food sanitation standard;

Scope of application:

n Suitable for the filling of liquids such as sauce, vinegar and beverage, and the filling of particle-bearing pasty materials such as chilli sauce, tomato sauce and oyster sauce.

项目

Item

XL-16

灌装范围

Filling range

80-500ml

500-2000ml

灌装速度

Filling speed

4000-5000瓶/小时bottles/h

2000-4000瓶/小时bottles/h

灌装精度

Filling precision

≦±3mm(液面误差)

(liquid level error)

瓶径规格

Bottle specification

瓶径Bottle diameterφ38-100mm

瓶高Bottle heightφ65-260mm

电源

Power

AC220V/50/60Hz 500W

重量

Weight

850㎏

气压范围

Pressure  range

0.4-0.6Mpa

主机尺寸

Host dimension

1750×1250×1945mm（不含输送机长度）

(excl. length of conveyor)
