Work Flow:
1. Bottle Feeding Bottles are automatically aligned and fed into the system via the bottle feeder.
2. Rotary Granule Filling A high-speed rotary filling machine doses the granular salt into bottles with precision and speed.
3. Caps Feeding and Robotic Cap Placement The cap sorter delivers caps, and the robotic arm places them accurately onto each bottle.
4. Cap Pressing The cap pressing station ensures the caps are tightly sealed onto the bottles.
5. Shrink Sleeve Labeling (Optional) Moisture-proof shrink sleeves are applied and heat-shrunk to fit, enhancing the final product's retail appeal.

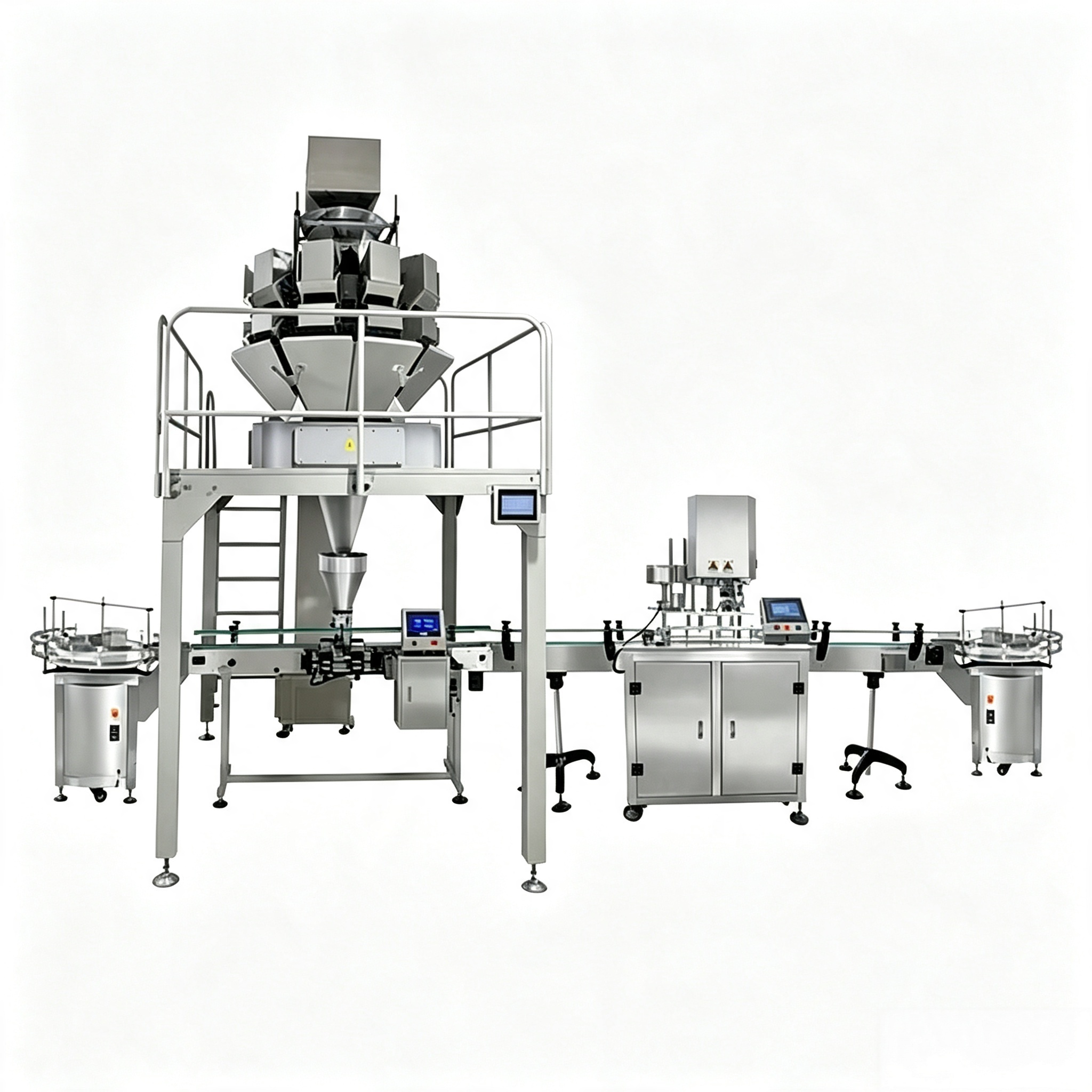

Product Name | Automatic Filling Production Line For Granule |
Filling Range | 10-2000g (Customizable) |
Filling Speed | 120 PCS/min |
Measurement accuracy | ±0.3-1.5% |
Power | 1 KW |
Working power supply | 220V、50Hz |
Working pressure | 0.6-0.8MPa |
Weight | 400kg |
Size | L4002*W2694*H2250(mm) |
