Horizontal packing machine

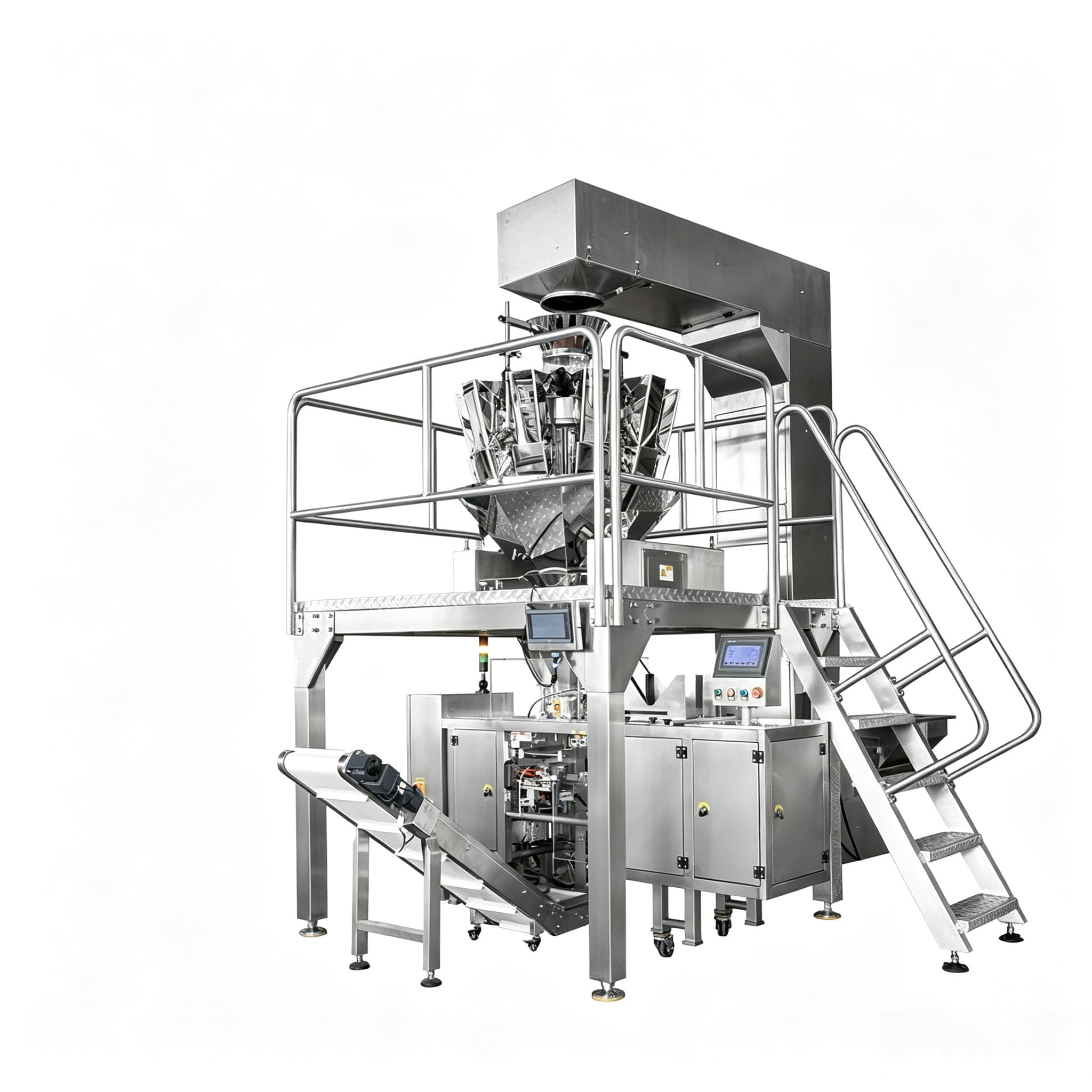

Premade Pouch Doy Pack Pet Dog Food Packing Machine

Product description: Automatic Stand up Bag Zip Doypack Grain Snack Granule Packaging Machines Premade Pouch Doy Pack Pet Dog Food Packing Machine
INQUIRY

Application:

Chips,snacks,candies,dried fruit,Rice,grain, capsule, seed, condiments, chicken essence, melon seeds, nuts,pet food, etc.

Working Progress:

Auto feeding tube feeds material in buffer hopper of auger filler

→multihead weigher will weighing and filling materials at target weight automatically

→ the rotary packing machine machine realize bag-opening, filling, date printing, sealing, counting,etc.

→Take-off conveyor will convey out the finished bags automatically

Model	XLY -200	XLY-260	XLY-300
Metering capacity	100-1000g	150g-2.5kg	250g-3.5kg
Speed	30-40 bags/min	25-40bags/min	15-30bags per min
Bag shape	Premade four side seal bag, zipper lock bag,self-standing bag, M gusset bag,3 side seal bag,doypack bag,etc.
Bag size	W100-200mm L150-300	W140-260 L150-400	W150-300 L150-400
Accuracy	±0.5-2g	±0.5-2g	±0.5-2g
Compressed air requirement	0.6 MPa 0.36 M3/min	0.6 MPa 0.36 M3/min	0.8 MPa 0.36 M3/min
Working station	8	8	8
Voltage / power	380V 50HZ 3P 4.5KW	380V 50HZ 3P 5KW	380V 50HZ 3P 5.5KW
Machine weight	800 kg	1000kg	1200kg
Pouch material	Plastic,paper
