Horizontal packing machine

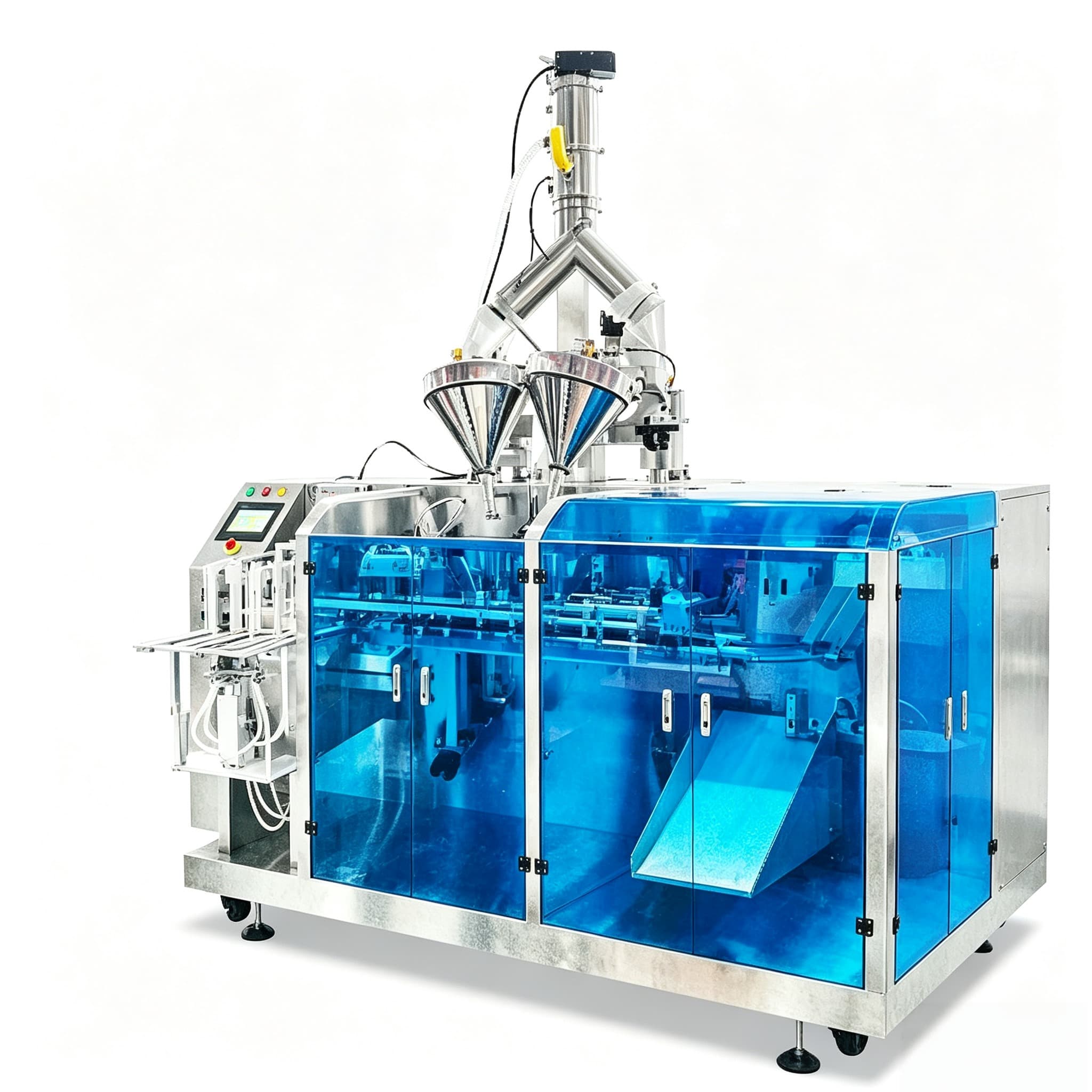

High speed Twin‑Auger Powder Filling & Pouch Packing Machine

Product description: Twin‑Auger Filler Premade Pouch Powder Packing Machine for Spices, Flour, Milk Powder, Chemical Powder,mixing powder and also high speed
INQUIRY

Powder system :

1.Screw conveyor /Vacumm conveyor for transport powder to auger filler.

2.Auger filler Screw is for measure weight per bag/Jar.Screw diameter can be customized base on target weight.

3.Rotary packing machine for pre-made bags packing,including get bag,print,open bag,fill, Vacuum/Fill nitrogen,hot seal,cold seal.

4.Round table:Collect finished bag.

Product Application
It is suitable for packing powder product such as milk powder, wheat flour, coffee powder, tea powder, bean powder.

Main Features

Adopt auger filler for powder metering, suitable for fine & poorflow powder.

Full automatic: bag picking, opening, filling, sealing, output finished pouch.

Easy recipe storage, quick size change without extra tools.

Safety protection: emergency stop, door open stop function.

Support optional: nitrogen flushing, zipper closing, date printing.

Model	XLY -200	XLY-260	XLY-300
Metering capacity	100-1000g	150g-2.5kg	250g-3.5kg
Speed	30-40 bags/min	25-40bags/min	15-30bags per min
Bag shape	Premade four side seal bag, zipper lock bag,self-standing bag, M gusset bag,3 side seal bag,doypack bag,etc.
Bag size	W100-200mm L150-300	W140-260 L150-400	W150-300 L150-400
Accuracy	±0.5-2g	±0.5-2g	±0.5-2g
Compressed air requirement	0.6 MPa 0.36 M3/min	0.6 MPa 0.36 M3/min	0.8 MPa 0.36 M3/min
Working station	8	8	8
Voltage / power	380V 50HZ 3P 4.5KW	380V 50HZ 3P 5KW	380V 50HZ 3P 5.5KW
Machine weight	800 kg	1000kg	1200kg
Pouch material	Plastic,paper
