Purpose:

It is suitable for double bag packing of small granular products, such as tea leafs, medicinal tea and health care tea.

Feature:

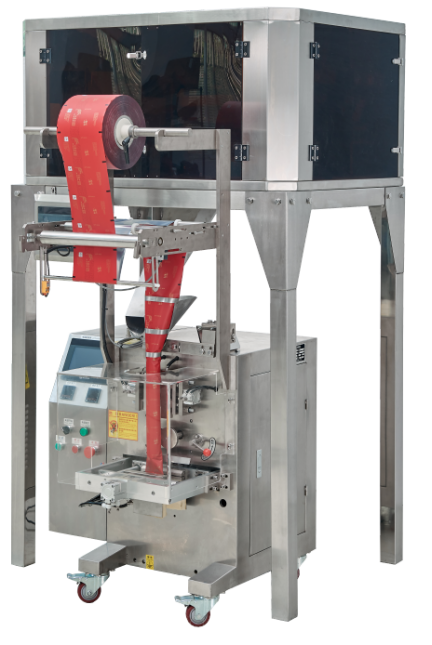

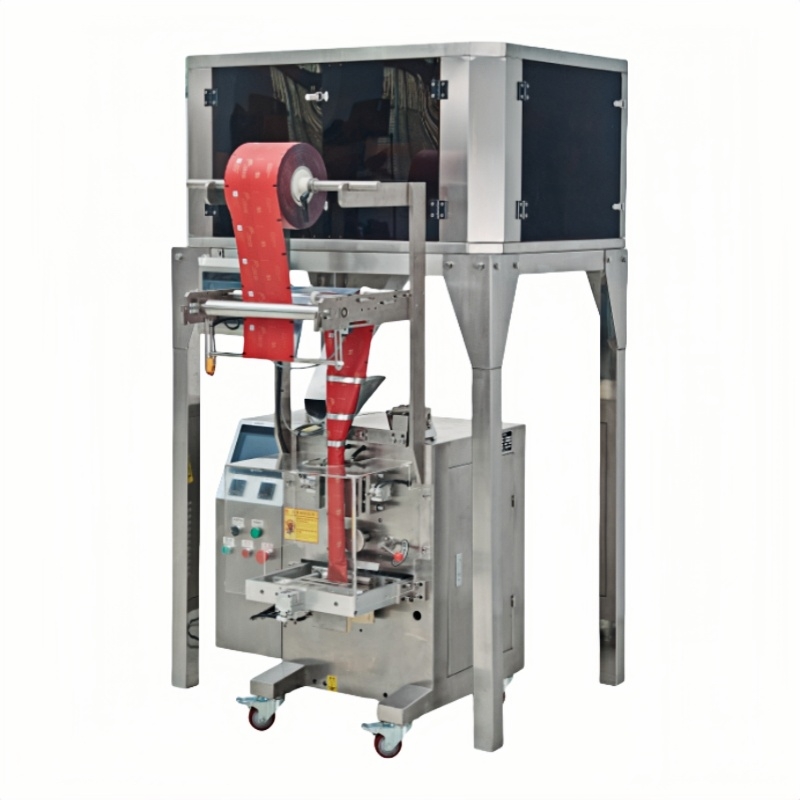

This machine is an automaticmulti-functional teabag packaging equipment with a new heat sealing type. The inner and outer bag forming is finished at the same time, avoid direct contact with the packing material and improve working efficiency. Inner bag is made of filter paper with thread and tag attached, and outer bag is made of composite paper. The biggest advantage is: tag attachingandouter bag making canadoptphotoelectricpositioning. Packing capacity, inner bag and outer bag size can be easily adjustedaccording to different requirements in order to achieve the best packaging results, improve productappearance and enhance the value of the product.

Packing Material:

Paper/Plastic,Plastic/Plastic,Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Tea filter paper，Thread, Tag paper.

Technical data

Measuring:

Volumetric cup filler

Filling range:

3~15ml

Packing speed

30~50 bags/min

Tag Size

L:20~24mm , W:40~55mm

Thread Length

155mm

 Inner Bag size

L:50~70mm , W:40~80mm

 Outer Bag size

L:70~120mm, W:60~90mm

Power:

220V, 50HZ, 3.7KW

Dimension (L*W*H):

1250*700*1800mm

Weight:

370KG
