Box packing and Case erector

  • Automatic box packing machine

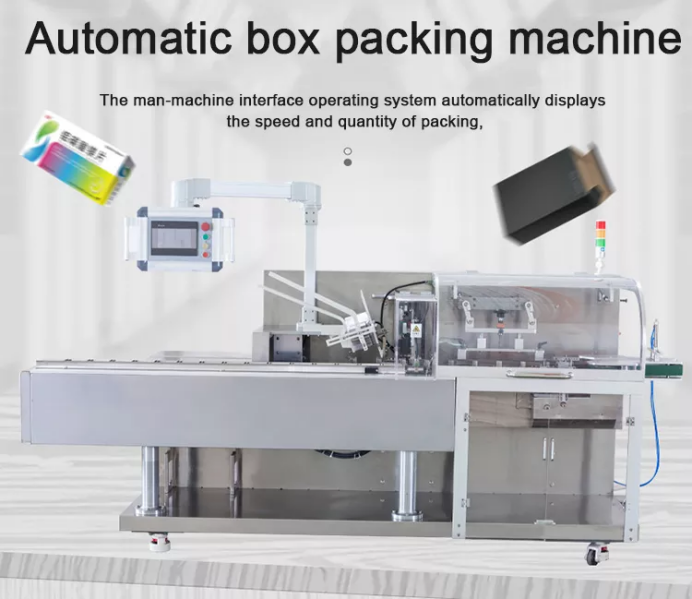

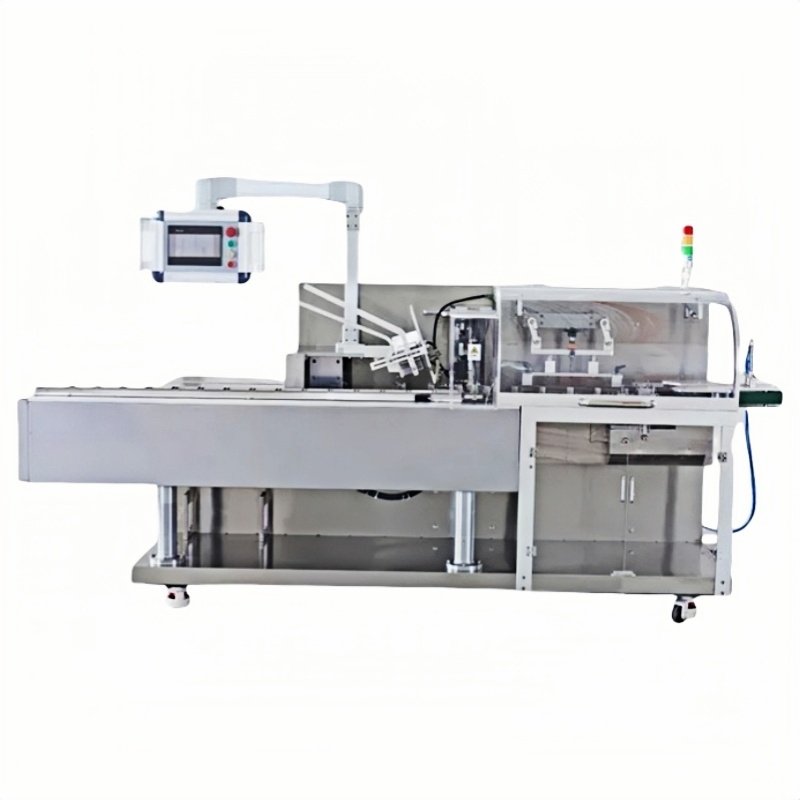

Automatic box packing machine

Automatic box packing machine

Automatic box packing machine



1. Automatic opening, folding instructions, blanking, feeding, batch number printing, box sealing, inspection and waste removal are adopted, with stable operation, low noise and simple operation adjustment.

2. PLC and man-machine interface automatic control operating system, stepless frequency control,

High degree of automation, easy to operate and understand.

3. International famous brand electrical components are adopted, with stable and reliable performance.

4. Automatically eliminate the packaging products without package or instructions to ensure the quality of packaging products.

5. Mechanical overload automatic stop function is adopted to ensure human-machine safety.

6. According to the customer's requirements, the upturned safety cover can be used, which is easy to operate and beautiful in appearance.

7. It has the functions of fault display, alarm and finished product counting, which is convenient for maintenance and troubleshooting.





Capacity

50-130pcs/min

Box

Box quality

250-350g/m2(As the carton size and decide)

Max.size

200*90*80mm

Min.size

55*20*12mm

Leaflet

Paper quality

55-65g/m2

Max.size

240*190mm

Min.size

110*80mm

Compressed air

0.5MPa (>0.6m3/min)

Air consumption

20m3/h(0.5-0.7MPa)

Power supply

AC220 50HZ  1.0KW

Dimensions

4600*1200*1750mm

Weight

1100kg
