n Advanced HMI operation, PLC control;

n All material contact parts are made of 316L stainless steel, and surface is made of 304 stainless steel, fully up to related food sanitation standard;

n High-precision filling control, with bubble-proof and drip-proofing;

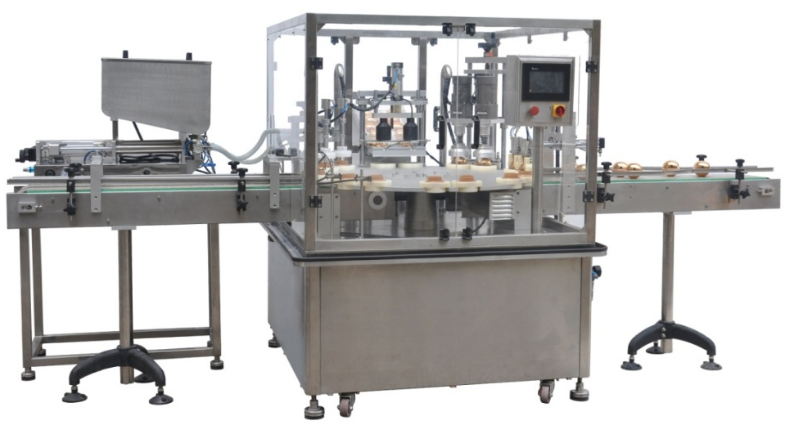

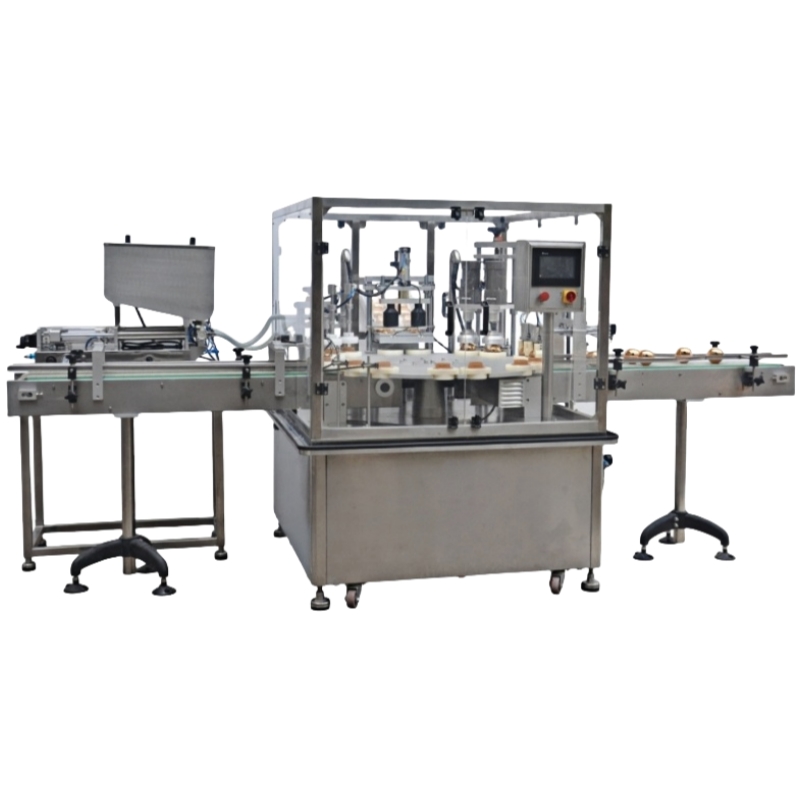

n Rotary disk structure, excellent design, compact structure;

n Protective doors are installed on two sides, which make it safe to use.

n This equipment is integrated multi-station packaging equipment, and the stations include: double-head filling, double-head capping and cap-pressing, double-head cap-screwing.

Scope of application:

n Designed in accordance with the sample bottle including food, medicine, cosmetics, petrochemicals and daily articles;

Item

SFZGX-02

Filling precision

≧±1%

Filling range

10-120ml/25-250ml/50-500ml

Screwing height

50-250mm

Screwing width

20-60mm

 Production capacity

10-30瓶/分bottles/min

 Power

AC220V 50/60Hz W

Weight

600㎏

Pressure range

0.4-0.6Mpa

Host dimension

1350×1500×1650mm
