Vertical packing machine

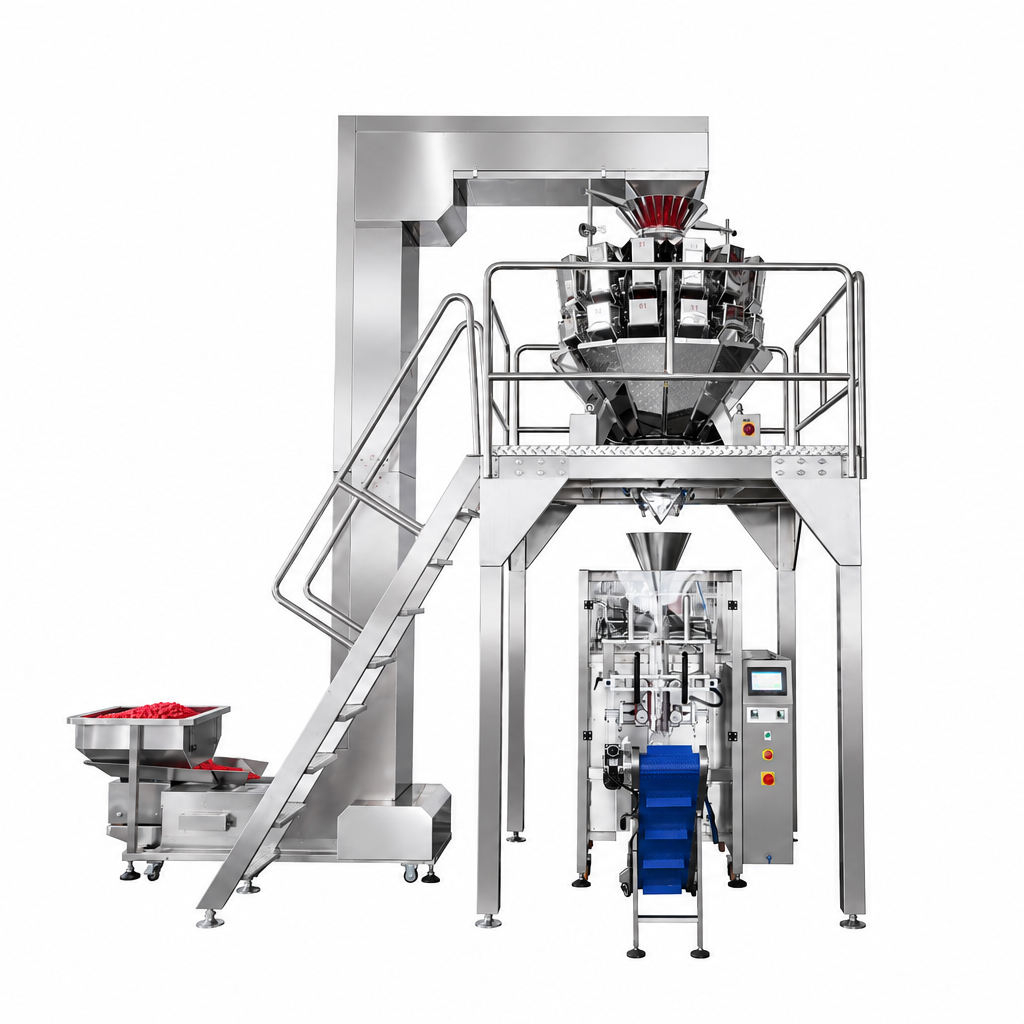

XLY -520 Multi-Head Weighing Packing Pistachios Nuts machine

Technical Characteristics:

Famous Brand PLC

Double servo motors for pulling film down system

Automatically film recitifying function

Adopt clip or supporting without broken bags ; reduce waste

Many kinds of languages can be choosed

Technical Parameters

Type	XLY-1020	XLY-820	XLY-720	XLY-620	XLY-520	XLY-420
Bag length	100-800mm(L)	100-700mm(L)	100-450mm(L)	100-400mm(L)	100*350mm(L)	50*300mm(L)
Bag width	100-500mm(W)	100-400mm(W)	100-350mm(W)	100-300mm(W)	100-250mm(W)	80-200
Max roll film width	1020mm	820mm	720mm	620MM	520MM	420MM
Packing speed	5-60 bag/min	5-60 bag/min	5-60 bag/min	5-60 bag/min	5-80 bag/min	5-80 bag/min
Air consumption	0.65 m3/min 1.0Mps	0.65 m3/min 1.0Mps	0.65 m3/min 1.0Mps	0.65 m3/min 1.0Mps	0.65 m3/min 1.0Mps	0.65 m3/min 1.0Mps
Power voltage	6KW 220V 50/60HZ	6KW 220V 50/60HZ	3KW 220V 50/60HZ	2.7KW 220V 50/60HZ	2.5KW 220V 50/60HZ	2KW 220V 50/60HZ
