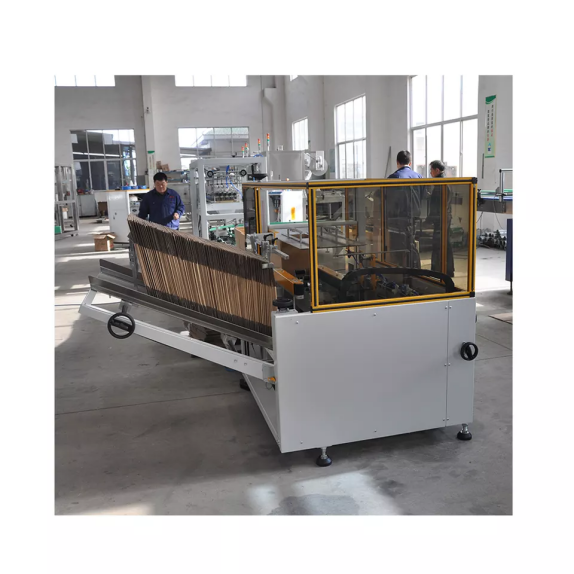

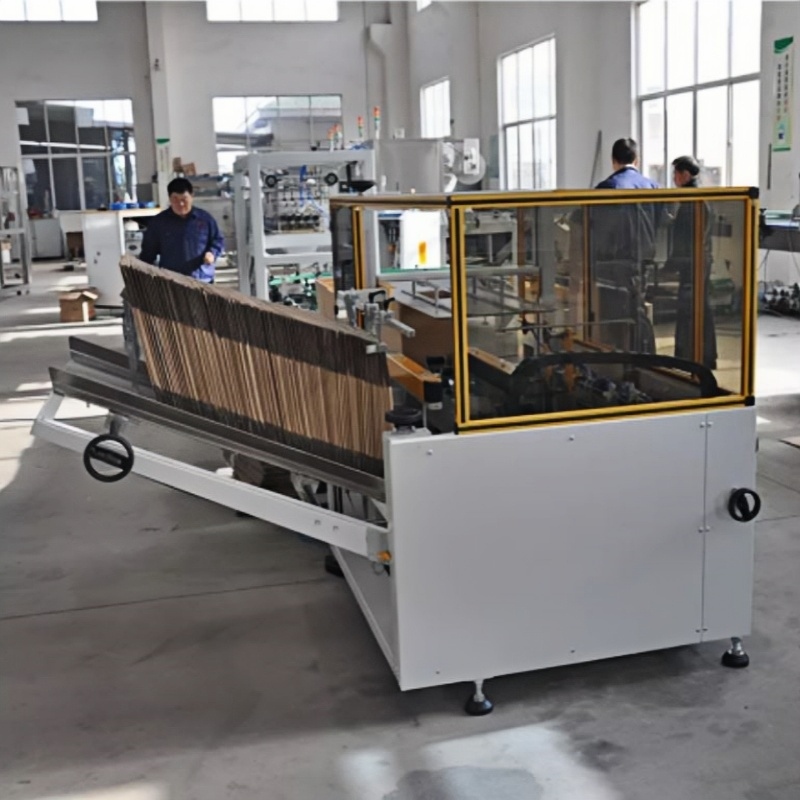

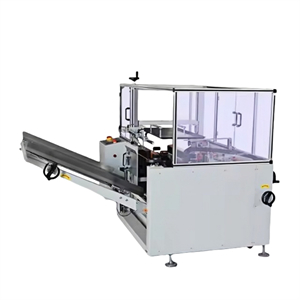

Automatic Case Packer / Case Erector / Carton box Packing machine with factory

1)    Using painted steel and lexan ® plastic safety shield,Meet CE criteria .

2)    Mechanical parts chrome steel, stainless steel, aluminum and corrosion.

3)  Main drive adopts adjustable speed reducer, variable speed, auto correct feature.

4) Bottle feeding feeding conveyor chain plate made of a ploymer material consisting of a low coefficient of friction ,continous feed bottles, lane guide.

5) For Product location for automatic speed adjustment and all the bottle detection.

6) The detection of inverted bottle and lack of bottle in the enter bottle place ,alarm for shortage of box .

7)  main electric cabinet on the machine.

8)    Schneider low voltage control system

9)    AIRTAC pneumatic components

10)    Autonics photoelectric control system

11)    Siemens PLC process controller with the console, and a color LCD touch screen ,directly modify the machine parameters

2. Automatic Case Packer / Case Erector / Carton box Packing machine with factory priceMachine description

1)    voltage:380V(± 10%max)50Hz 3PH+PE.

2)    For non-380V voltages, can provide an auto transfer.

3)    Control voltage: 24V DC ,Schneider low voltage control system

4)    According to the IEC 529 standard, the electrical cabinet protection grade is IP54, Button protection grade is  IP65

5)    Insulating refractory cable (paint color according to the DESINA standard)

6)    Total switch: domestic brands

7)    Panel buttonØ30mm:Schneider

8)    proximity switch: South Korea

9)    With the joint of the photoelectric tube IP67 diameter18 D

10)  Relay connector conforming to Din50-022-35 standard

11)  Rapid stand joints conforms to the Din50-022-35 standard

12)  Contactor relay with the French Schneider TE/ABB

13)  frequency converter is Taiwan Teco

14)  main controller: Germany Siemens

15)  Asynchronous motor: Domestic

16)  Other electric driving device in accordance with the IEC529 standard is not less than IP54

17)  Gear motor; China

18)  Bearing:TR

19)  Chain: polymer plastics

20)  Electronic valve in accordance with ISO 505599/1/0 standard

21)  Cylinder and its accessories:AIRTAC or SMC

22)  The production line to set multiple fault protection and alarm and fault alarm device. All the fault alarm details are on the touch screen to highlight, prompted the need to solve the content and the main measures. The main action mechanism is provided with an electronic detection, automatic fault correction system is provided with a mechanical motion system, also can use manual reset button, the system automatically detecting and correcting .

3 .Automatic Case Packer / Case Erector / Carton box Packing machine with factory priceTechnical Parameter
