Box packing and Case erector

Automatic Carton Erector Machine , Case Erecting Machine

Automatic Carton Erector Machine , Case Erecting Machine

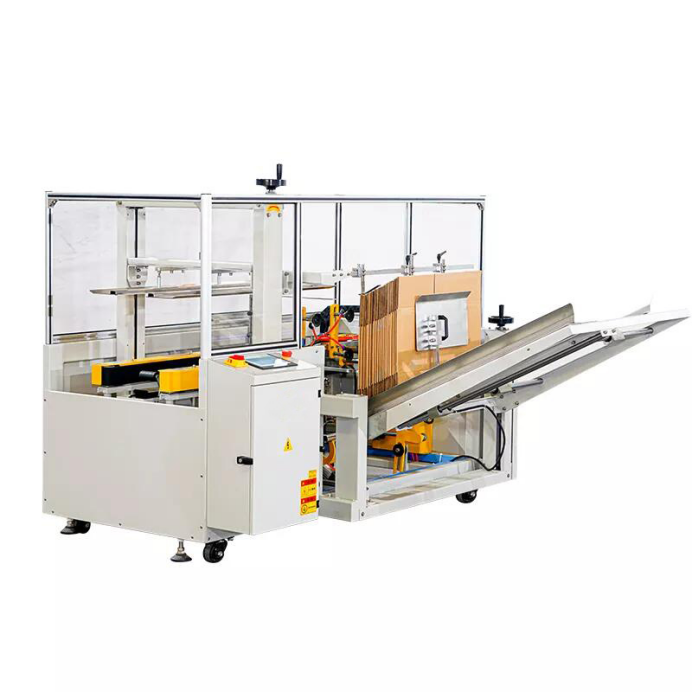

Automatic carton erector machine , case erecting machine (Siemens configuration)

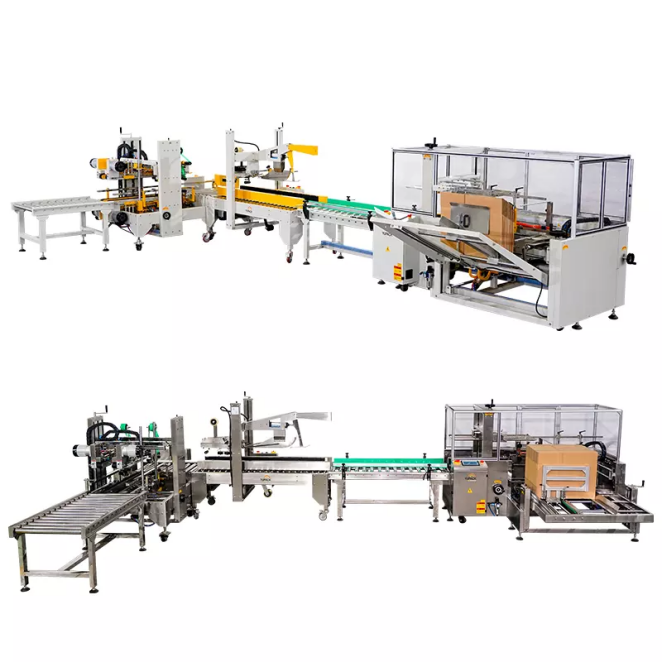

Carton erector machine can finish the work of carton opening, shaping, folding and sticking adhesive tapes.Equipped with our consistency system, it runs precisely and reliably.This machine provides extremely secure sealing effect, without tape slipping problems.Hot melt glue system is optional.It is widely used with our carton sealer ,carton packer ,weighting system,labeling machine,printing machine ,strapping machine and conveyor system accordingly.

Product Paramenters

Model

XL-4012

Voltage

220V 50Hz 1P

Power

200W

Speed

9-12carton/min

Table Height

620mm

Air

6kg/cm²

Applicable Carton

L450*W400*H400mm;L250*W150*H100mm

Tape

W48-75mm

Machine size

L2100*W2100*H1480mm

Machine weight

450kg
