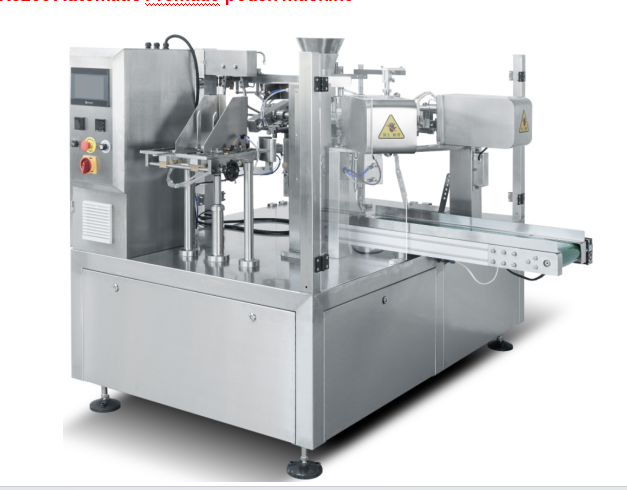

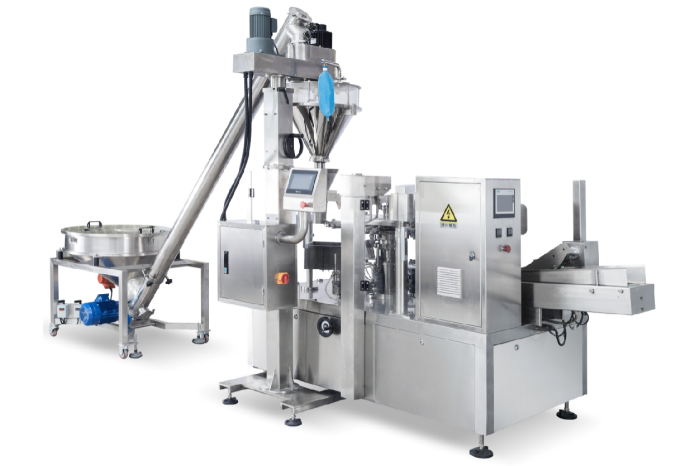

X8200 machine with Auger filler system
Purpose of the machine
Bag given packing machine adopts preformed bags, packaging design and beautiful, good sealing quality, tend to be more perfect packaging technology, perfect quality guarantee high and stable production, keep the machine durable and stable operation, waterproof system make cleaning cleaning more convenient. Packaging process without manual operation, effectively improves the production efficiency, for your company to save the labor cost and management cost, greatly reduce the cost.
Specification
Item | Content |
Machine position | Eight position |
Pouch material | Laminated film\PP\PE etc. |
Pouch pattern | Flat pouch |
Packing speed | *20~60 bags/min, depend on the measuring equipment, materials, product’s weight & packing film’ material. |
Accuracy | *≤±0.5~1%, depending on the measuring equipment & materials. |
Bag size | (L)150-300mm (W) 80-200mm |
Max bag width | 200mm |
Filling Volume | 10-1000g |
Bag type | Preformed bag: 3/4-side-seal pouch, Doypack pouch, Zipper bag, Stand-up pouch, four edge-sealing bag, special shape bag etc. |
Air consumption | 0.8Mpa 0.3m3/min(supply by user) |
Power | 3.5KW 220V 50/60Hz |
Dimension | (L)1900 * (W)1570 * (H)1450mm |
Weight of machine | 1300kgs |
Work flow | Giving bag→ Coding→ Opening→ Filling 1→ Filling 2→ Auxiliary→ Exhaust→Heat sealing→Forming and output product. |
Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 2. 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
