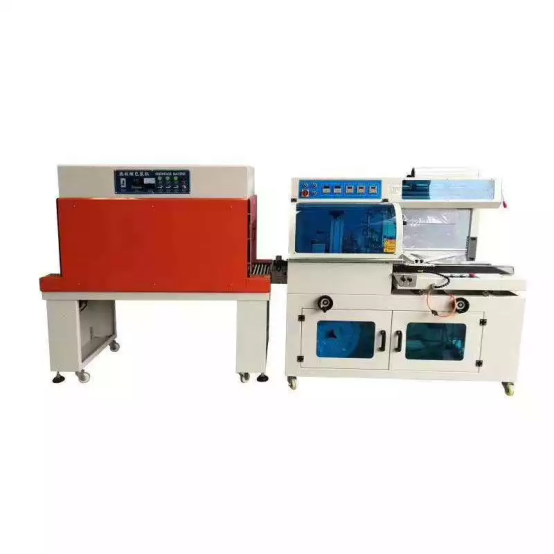

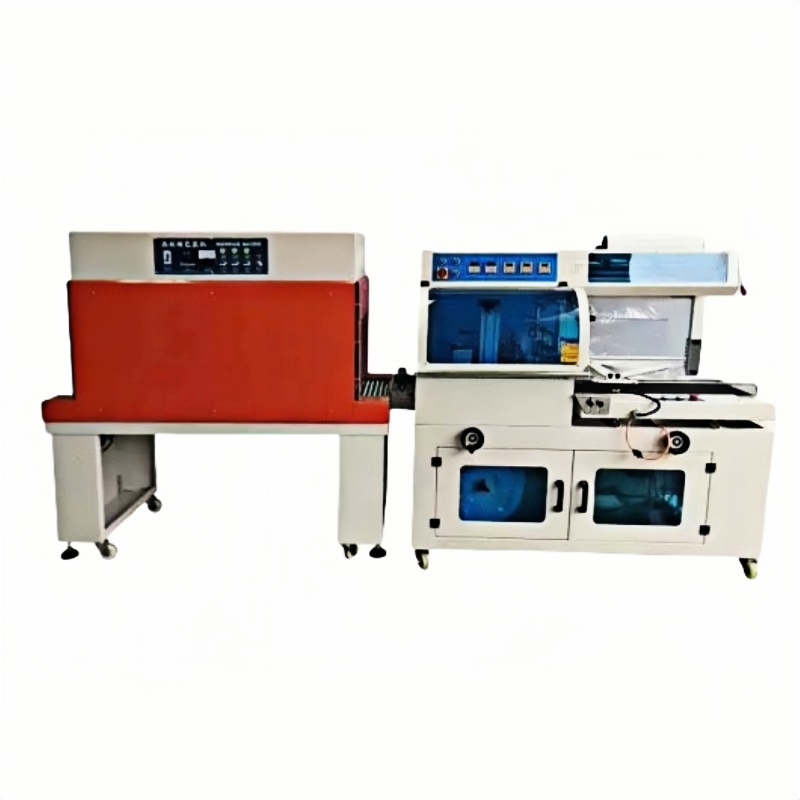

Shrink wrapping machine

  •  Auto Shrinking Tunnel Shrink Packing Wrapping Machine for boxes
 Auto Shrinking Tunnel Shrink Packing Wrapping Machine for boxes

Auto Shrinking Tunnel Shrink Packing Wrapping Machine for boxes

 Auto Shrinking Tunnel Shrink Packing Wrapping Machine for boxes


Fully automatic L-shaped sealing and shrinking machine packaging machine is a fully automatic unmanned packaging machine, which can be used with automatic packaging lines. feeding, bagging, sealing, cutting and shrinking are completed automatically. High working efficiency. A shrink film is used to wrap the product or package, and the heat shrinks the film to tightly wrap the product or package. It enhances the product's display type, and increases the sense of beauty and value. The articles packed by the heat shrinkable machine can be sealed, protected from moisture and pollution, and protect the goods from external impacts. They have a buffer effect, especially It is used to prevent fragility when the container is broken when packing fragile products. In addition, the possibility of the product being disassembled or stolen can be reduced.

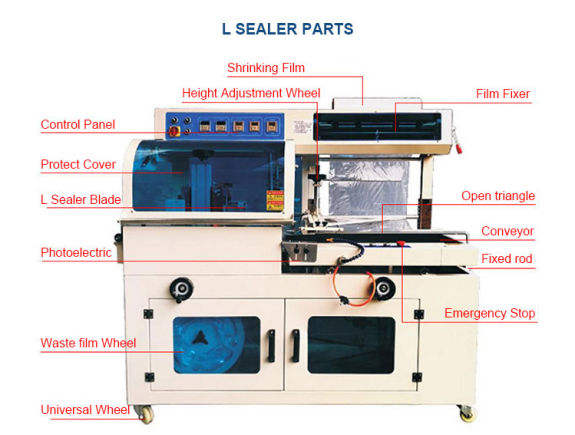

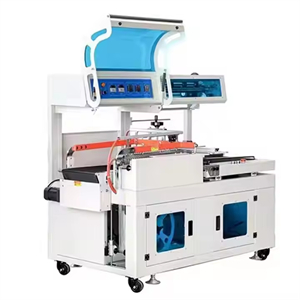

L SEALER

XL 450 A

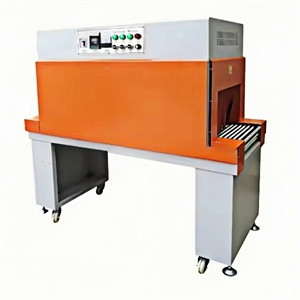

SHRINK TUNNEL

XL 4020C

VOLTAGE

220/50-60HZ

VOLTAGE

380v 50-60HZ

POWER

1.35KW

POWER

9KW

AIR PRESSURE:

5-7

TUNNEL SIZE(L*W*H)

1200*400x200mm

CAPACITY

15-30bags/min

PRODUCT SIZE(W*H)

350x150mm

PRODUCT MAX SIZE L+H(H<150mm)

<500mm

CONVEYOR SPEED

0-15m/min

PRODUCT MAX SIZE W+H(H<150mm)

< 400mm

MATERIAL

CHAIN, TEFLON

SEALING SIZE

550*450mm

CONVEYING LOAD

20kg max

MACHINE SIZE (L*W*H)

1650*800*1450mm

MACHINE SIZE (L*W*H)

1600x560x660mm

WEIGHT

300KG

WEIGHT

80kg

APPLICATION:

POF.PE,

APPLICATION:
