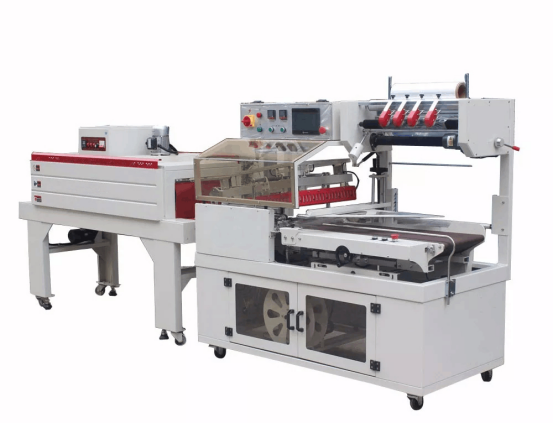

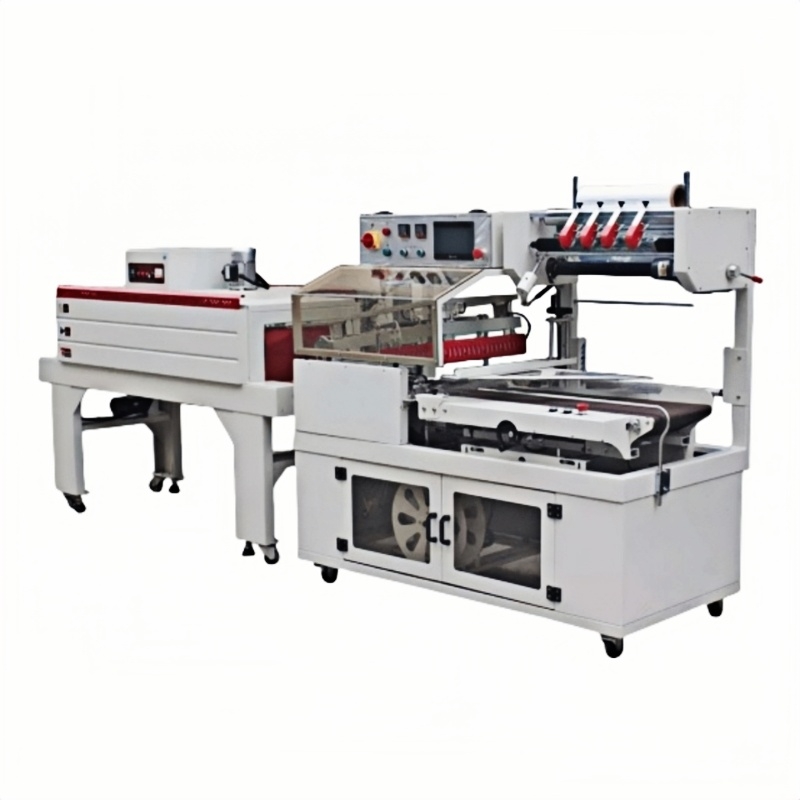

Thermo shrink packaging machinery

Performance features

•High speed servo drive L bar sealer, do not need connect with air pressure.

•XL450S is fully automatic L bar sealer which is widely used in mass production packaging line with high efficiency. •With movable type punching device, you can switch the punching position and control the pinholes number. •Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution. •Using digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate which can be set arbitrarily. •Imported photoelectric sensor, positioning accuracy, fast response. •Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation. • Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items. •Equipped with automatic scrap recycling mechanism, built-in film broken alarm function. •The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting. •Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film. •The entire machine realizes unmanned operation with the production line connecting. •Apply to daily necessities, food, cosmetics, pharmaceutical, hardware and other industries shrinking packaging. •XL450S  shrink tunnel adopts the design of internal double recycling air fan, so that the hot air in the tunnel is even, constant temperature. •The machine uses stainless steel finned heating tube which has a long service life and high heating efficiency. •Chain bar conveying , using hollow steel covered with durable imported silicone tube, each bar can rotate freely. •Suitable for POF, PVC, PP, PET heat shrinkable film.

Technical Parameter

L bar sealer

Heat shrink tunnel
