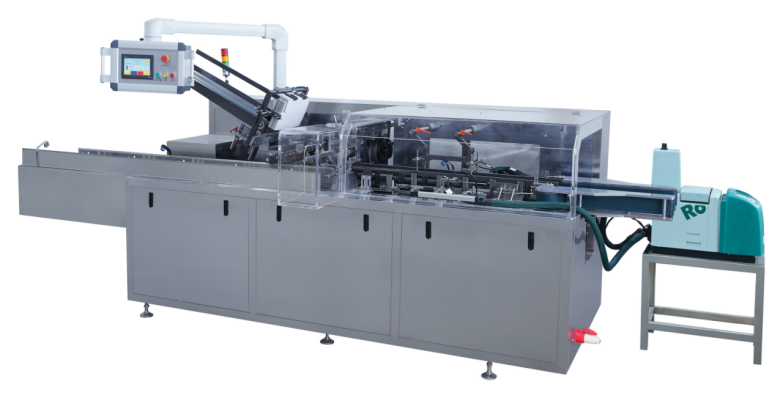

XLY-200 BOX Packing with glue machine
Main Technical Parameter:
Encasing Speed | 40 -45boxes/min | |
XLY -box pa]cking malchine
| Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
Dimension range (L×W×H) | (150-340)mm×(100-200)mm×(30-90)mm can customize according to your requirement | |
Compressed air | Working pressure | ≧0.6mpa |
Air consumption | 20m3/h | |
Power supply | 220/380V 50Hz (do your request) | |
Motor power | 1.5KW | |
Machine dimension (L×w×H) | 4700*1450*1900mm | |
Machine weight | 1800KGS |
Standard Feature
● Touch Screen HMI controls
● PLC programme
● JAPAN OMRON electric parts (inverter, PLC,touch screen...)
● GERMANY SICK photocell
● different sizes are adjustable in one machine within machine size range
● without product, carton will be not sucked down
● Auto display trouble, alarm and count finished product
Optional Function
● Auto conveyor
●Other brand like SIMENS (inverter, PLC, touch screen) ● Print batch number or date on carton box
Main Parts List
Item | Name | Model and specification | Origin | QTY |
1. | PLC | CPIE-N30DT-D |
Japan Omron | 1 |
2. | PLCExtended Module | CPIE-C1F11 | Option | |
3. | Touch Screen | NB7W-TWOOB | 1 | |
4. | Inverter | 3G3JZ-A4015 | 1 | |
5. | Photosensor | SICK 121 | Germany Sick | 1 |
6. | Motor | CH-1500-10S 1.5KW | Zhejiang | 1 |
7. | Diving Box | 0S83-4L-180 | Zhejiang | 1 |
8. | Button | XB2 | France Schneider | 3 |
9. | Emergency Stop | ZB2 BC4D | 1 | |
10. | Electromagnetic valve | 4V210-08 | Taiwan Airtac | 2 |
11. | Pressure regulator valve | BFR-2000 | 1 | |
12. | Proximity switch | TL-Q5MC1 | Japan Omron | 2 |
13. | Sucking disc | VF-30 | Korea | 2 |
14. | Vacuum sounder | ABM20-C | Japan SMC | 1 |
15. | AC contactor | LC1E3210M5N | France Schneider | 1 |
16. | Switching power supply | PMC-24V 050V | Taiwan Delta | 1 |
17. | Air switch | 3P32A 1P10A | France Schneider | Each 1 |
18. | Encoder | B-ZSP3806E2C | Japan Omron | 1 |
19. | Cover | stainless | Shanghai | 1SET |
