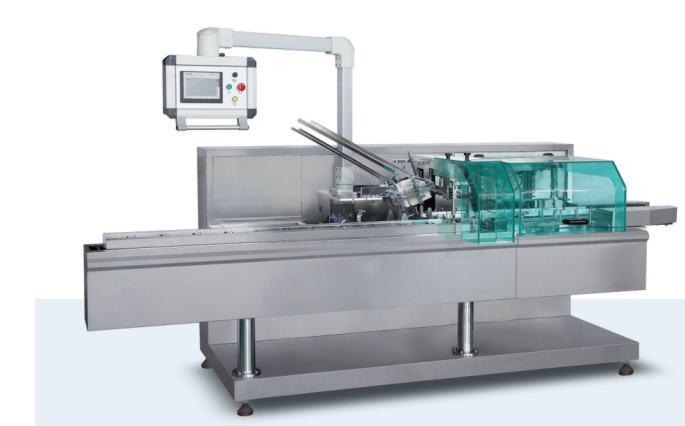

XLY-120 automatic foods cartoning machine
Standard Feature
● PLC programme
● Panasonic photocell
● different sizes are available in one machine within machine size range
● without product, carton will be not sucked down
● Auto display trouble, alarm and count finished product
● Overload protection
Main Technical Parameters
Item | Parameters | |
Encasing speed | 3600-5400 cartons /hour | |
Box | Quality requirement | 300-350g/m2[Base on carton size] |
Dimension of carton(L×W×H) |
(60-200)x(30-80)x(20-50)mm | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 120-160L/min | |
Power supply | 380v 50HZ 3 phases | |
Main motor power | 1.5kw | |
Machine body dimension(L×W×H) | 3600x1500x1850 | |
Machine weight | 900kg | |
