Vertical packing machine

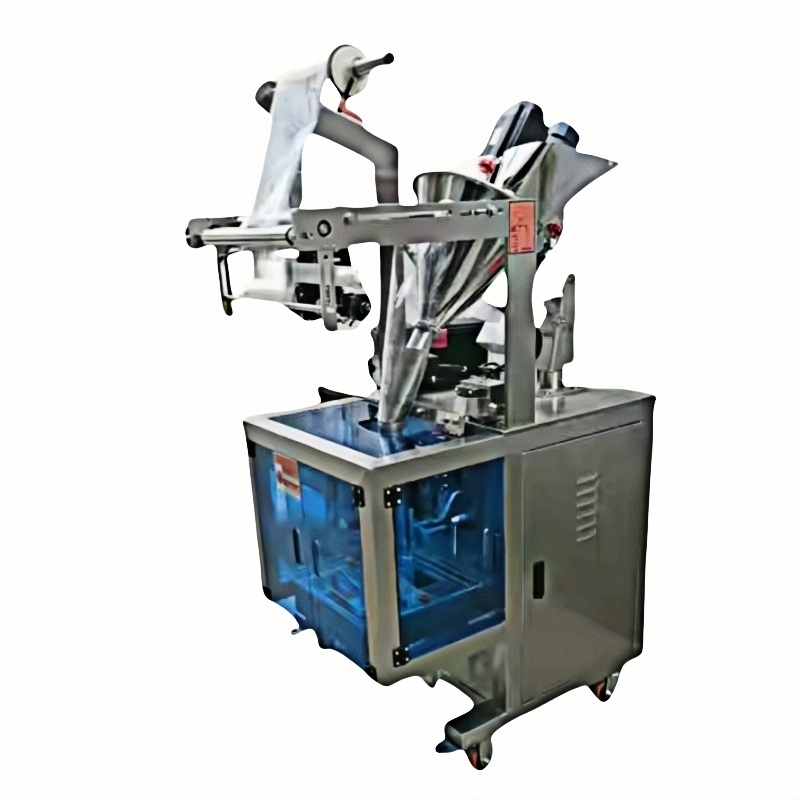

XLY -320 stick pack powder packing machine

1. Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.

2. 2.Computer PLC control and automatic alarming function.

3. 3. English and Chinese human-machine operation interface, it is easy to operate, a high degree of automation.

4. 4.High sensitivity photoelectric eye color tracing, more accuracy.

5. 5. Famous brand components, ensure the quality and durability of the machine

MODEL NO	XLY -320F
Filling Range	1-5ml/5-15ml/15-50ml/50-150ml/100-500ml
bag length range:	L: 30-200mm ( If special order can do 250mm)
bag width range:	Max.20-150mm
Packing Speed	20-70bags/min
Machine Size	L1100W7551730mm
Machine Weight	275KGS
Sealing Style	Three/Four sealing /Back sealing
Cutting type	Tooth Cut / Flat Cut
Packing film roll material	Laminate plastic hot sealing film(OPP/CPP.OPP/CE.MST/PE,Alumium)
POWER	220V,50/60HZ, Single Phase
