Small vertical packing machine

  • Granule Sachet Packing Machine with Volumetric Cup Filler

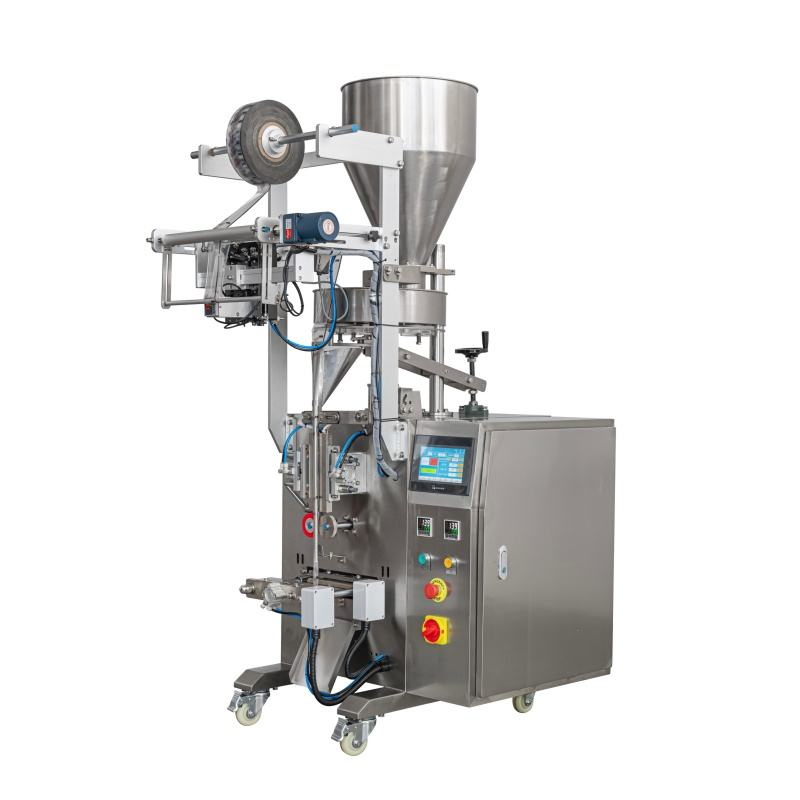

Granule Sachet Packing Machine with Volumetric Cup Filler

Product Introduction

1,Applicable to food, medicine, chemical, cosmetic industry in the granular material measurement packaging:
2,Can automatically complete the bag making, measuring, feeding, sealing, cutting, counting,

and can be configured according to customer requirements to print the batch number and other functions;
3,With a colourful POD touch screen, PLC control, drive stepping motor to control the length of the bag,

stable performance, easy to adjust, and accurate detection. Intelligent temperature controller,

 to ensure that the error range of the temperature will be controlled within 1C;

4, packaging materials for all kinds of composite film.


Technical Parameter

Measuring Scope

1-100g

Bag size

W: 30-130mm
L: 30-170mm

Packing speed

30-60bags/min (Depending on the material)

Dimension

900*1100*1900mm

Weight

320kg

Power Supply

220V 60/50Hz 1.4Kw

Air Consumption

≥0.6m3/min
