n Advanced HMI operating system, PLC control, 304 stainless steel surface;

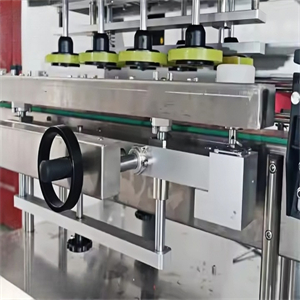

n 8-wheel capping in operation makes the screwing speed fast and effectively avoids theft-proofing cap breakage and damage to the bottle caps.

n It is possible to cater to varied bottle caps within the scope of this machine without replacement of parts by simply adjusting the synchronous belt, distance between cap screwing wheels and rack height.

n It applies to varied tall and short bottles which are round, square, oblate or flat square in shape.

Scope of application:

n It is used for cap screwing of round bottles, square bottles or oblate bottles.

n It can be used on the independent rack and is suitable for cap screwing at large scale production lines of customers.

n It applies to customers requiring replacement of different specifications of bottles.

Item

SFXG-120-8

 Cap diameter

φ19-55mm

 Bottle diameter

φ23-100mm

 Bottle height

45-320mm

 Screwing speed

30-100瓶/分（因瓶而异）

bottles/min ( depending on bottle types)

Power

AC220V 50/60Hz 1000W

Weight

650㎏

 Pressure range

0.4-0.6Mpa

Host dimension

2700×830×2190

Weight of capping machine

345㎏

 Dimension of capping machine

1060×560×2300mm
