n Advanced HMI operating system, PLC control;

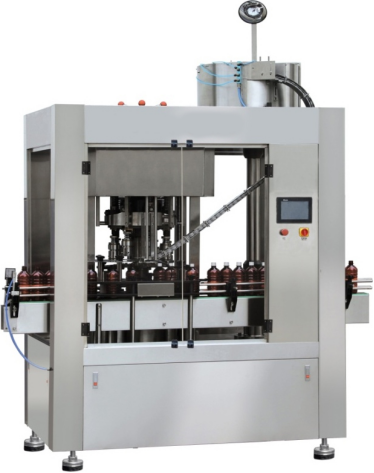

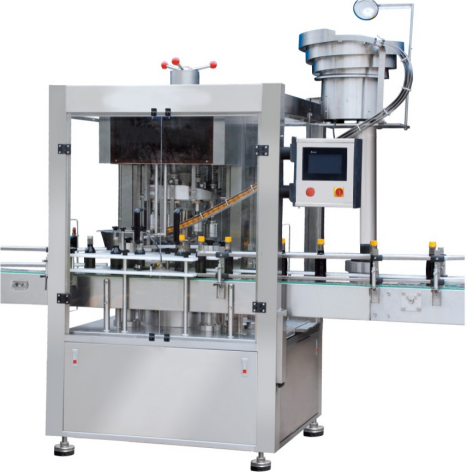

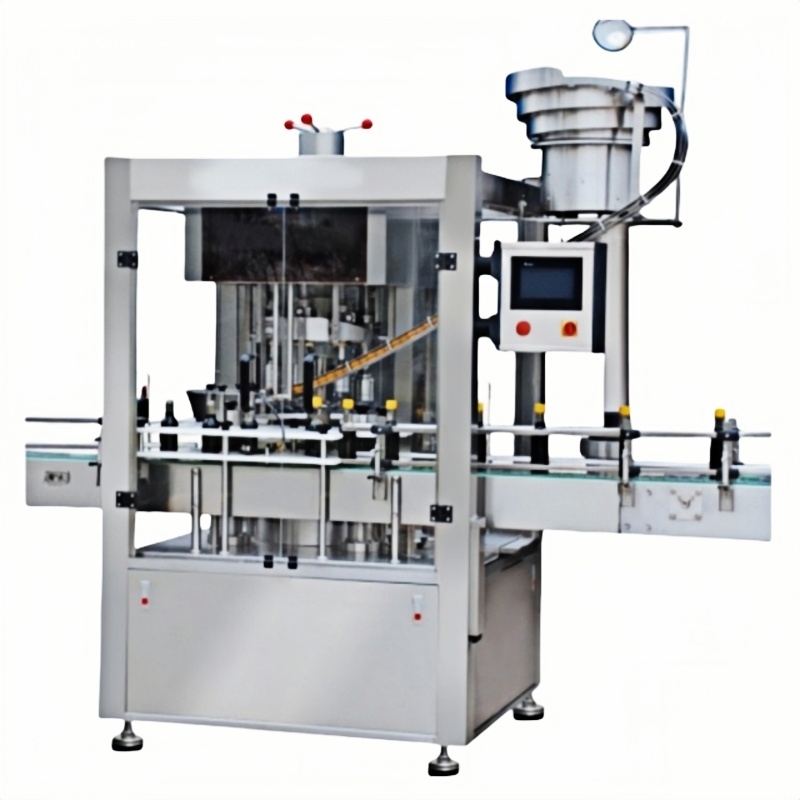

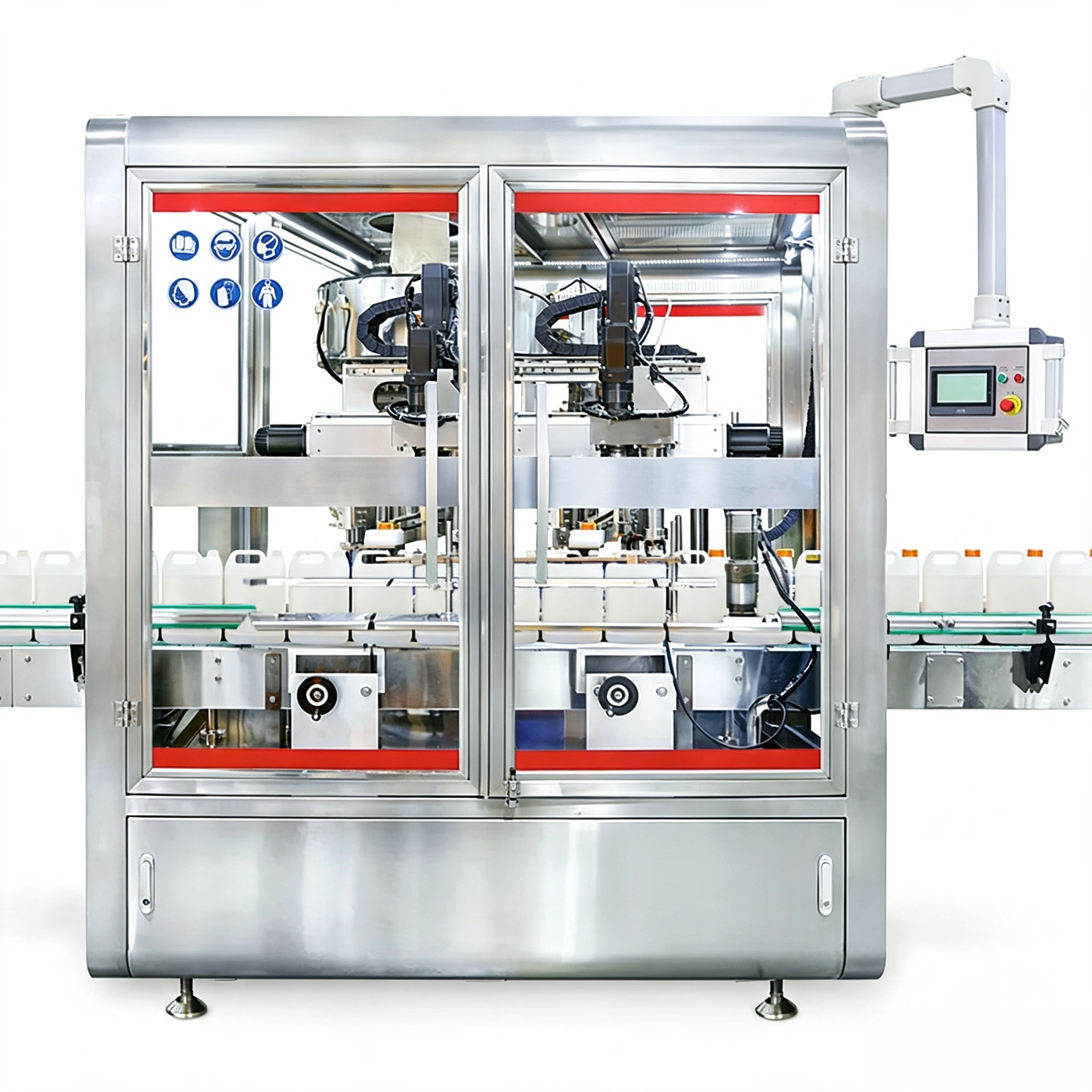

n The machine is designed with 8 manipulators for automatic bottle feeding, cap unscrambling, clinching and screwing.

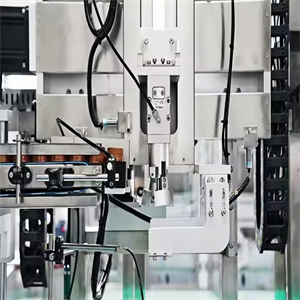

n The manipulators have belt rotating and pressing functions; screwing heads are equipped with a clutch; fastened caps can automatically slide without damage.

n Screwing speed is fast and conforming rate is high.

n The appearance structure is made of 304 stainless steel.

Scope of application:

n It applies to screwing and sealing of thread caps for food, pharmacy, daily use chemicals, pesticide and chemicals.

n It is suitable for screwing caps in poor coordination with the bottle opening.

Item

XL-8

Cap diameter

Φ20-55mm

 Bottle diameter

Φ40-100mm

 Bottle height

60-300mm

Screwing speed

≤6000瓶/小时bottles/h

Power

AC220V 50/60Hz 2KW

Weight

900㎏

Pressure range

0.4-0.6Mpa

Host dimension

2000×1300×2300mm
