n Advanced HIM operation, PLC control, stainless steel surface

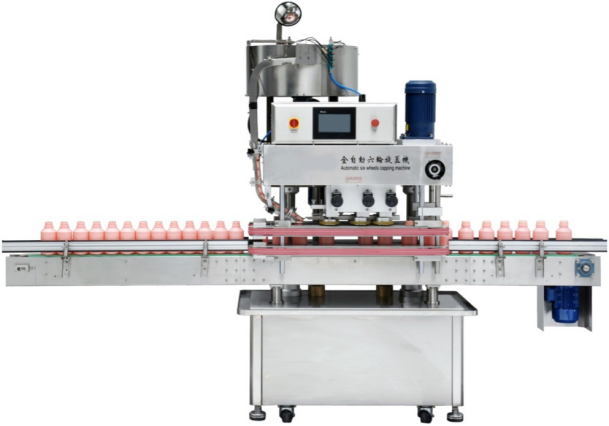

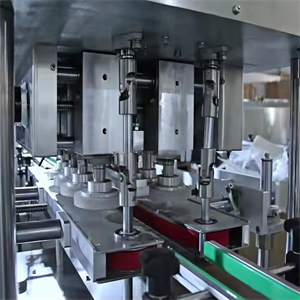

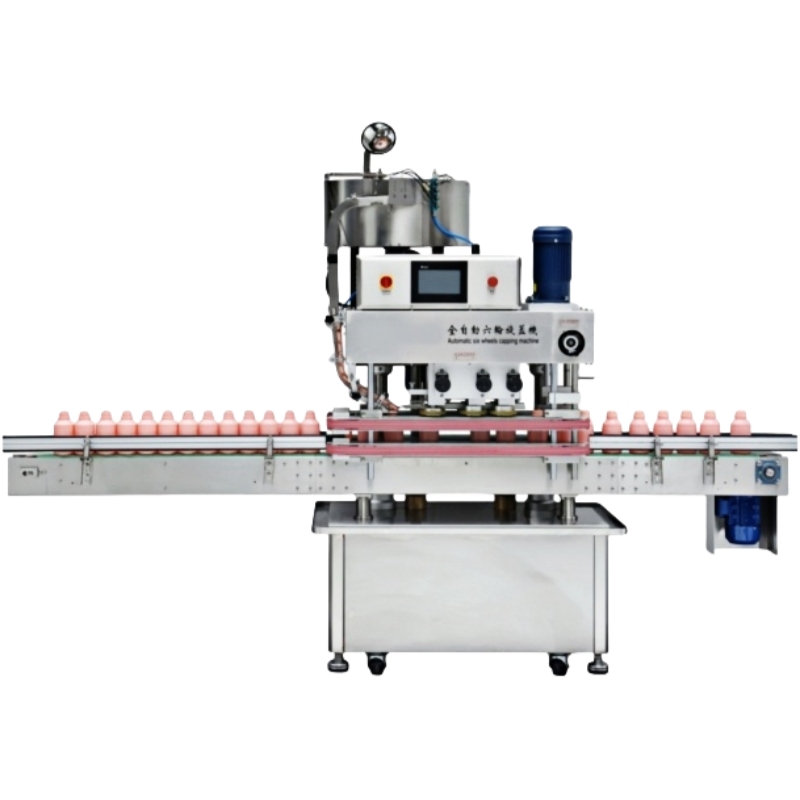

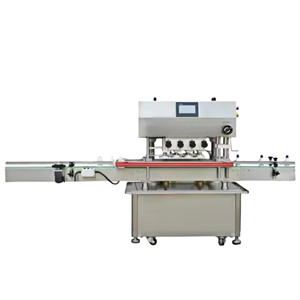

n Rotating cap unscrambling machine; 6-wheel in operation supports cap screwing, placing, hanging; capping is stable and reliable.

n It is possible to cater to varied bottle caps within the scope of this machine without replacement of parts by simply adjusting the synchronous belt, distance between cap screwing wheels and rack height.

n It applies to varied tall and short bottles which are round, square, oblate or flat square in shape.

Scope of application:

n It is used for capping of round, rectangular flat, and oblate bottles for food, medicine, cosmetics, petrochemicals and daily articles.

n It can be equipped with the automatic elevator.

n It is suitable for customers requiring replacement of different specifications of bottles

Item

SFXG-120-6

 Cap diameter

φ19-55mm

Bottle diameter

φ23-100mm

 Bottle height

45-320mm

Screwing speed

30-80瓶/分（因瓶而异）bottles/min (depending on bottle type)

 Power

AC220V 50/60Hz 1000W

Weight

600㎏

Pressure range

0.4-0.6Mpa

Host dimension

2700×830×2190mm
