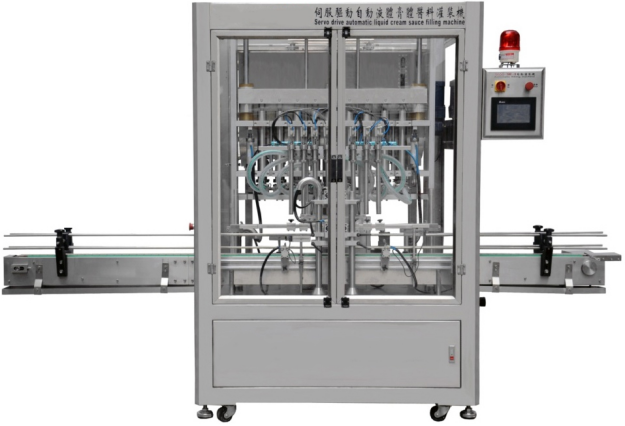

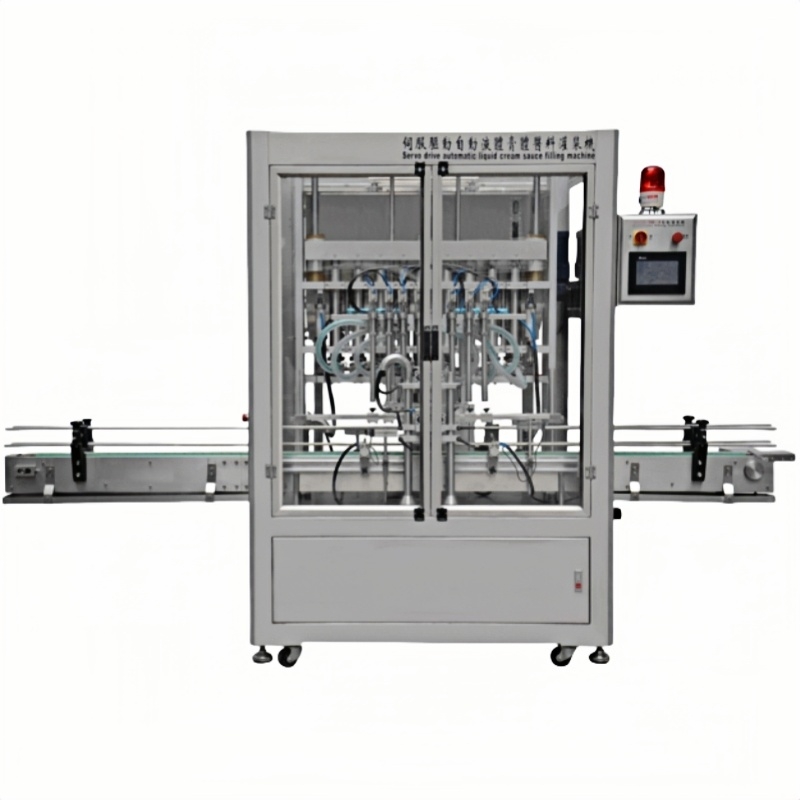

n Advanced HMI operation, PLC control;

n All material contact parts are made of 316L stainless steel, and surface is made of 304 stainless steel, fully up to related food sanitation standard;

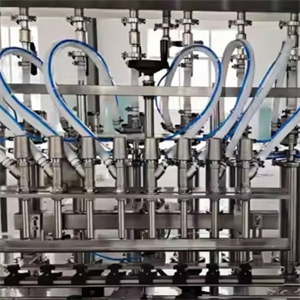

n Precision stainless steel piston cylinder processing technology guarantees accurate and consistent filling, and makes seal ring more durable;

n Frequency conversion drive; filling volume is set by HMI; it is easy for cleaning.

n It is used for filling sauces, liquid creams and liquids and is widely applied.

Scope of application:

n It is used for filling liquids, liquid creams and sauces(including soft particles)  (honey, chilli sauce, tomato sauce, pearl milk tea, coconut juice and orange juice) and is widely applied.

Item

XL-120-8

XL-500-8

XL-1000-8

XL-2500-8

XL-5000-8

Filling range

(10-120)ml×8

(50-500)ml×8

(100-1000)ml×8

(250-2500)ml×8

(500-5000)ml×8

Filling speed

30-60瓶/分bottles/min

30-50瓶/分bottles/min

30-40瓶/分bottles/min

Filling precision

≦±1液体liquid   ≦±2膏体liquid cream

Power

AC380V/50/60Hz 3KW

AC380V/50/60Hz 3.5KW

AC380V/50/60Hz 5KW

AC380V/50/60Hz 5.5KW

Weight

950㎏

Pressure range

0.4-0.6Mpa

Host dimension

1660×1330×2100mm

1940×1330×2100mm

2360×1450×2100mm

2800×1450×2180mm
