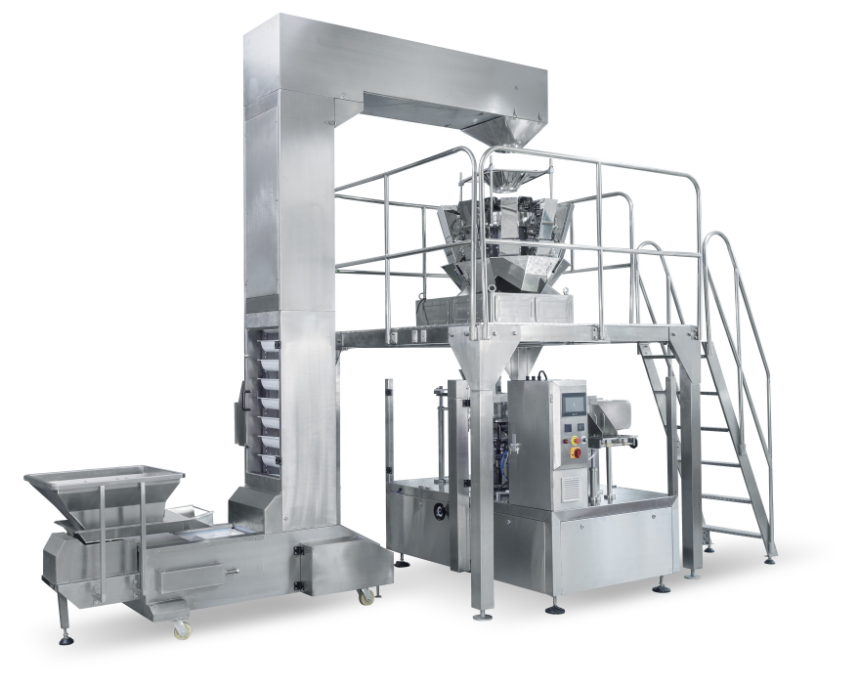

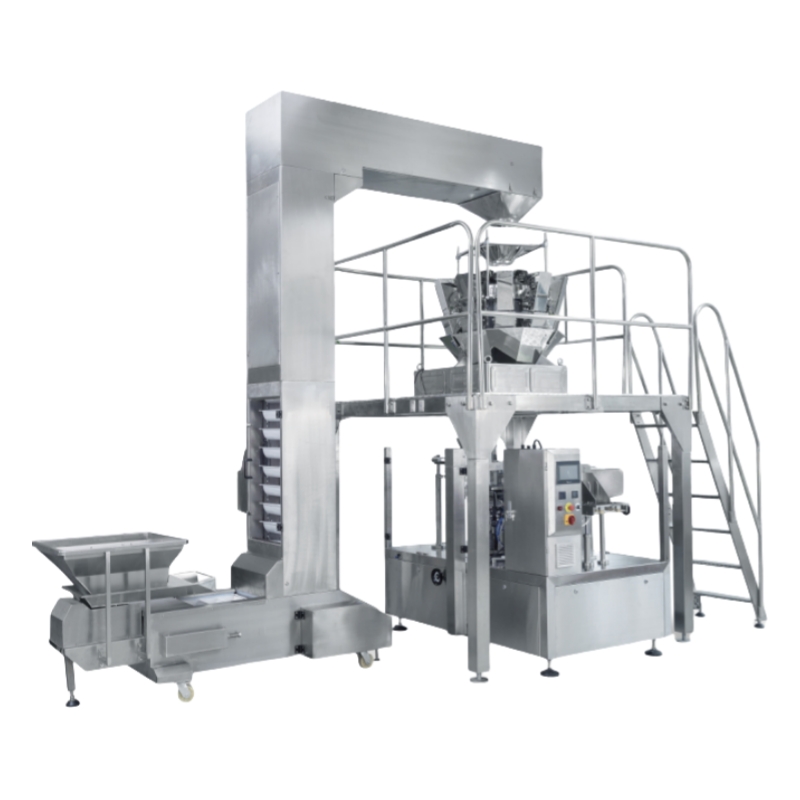

Model

XL-8200

Machine position

Eight position

Pouch material

Laminated film\PP\PE etc.\PP\PE等

Packing speed

*20~60 bags/min, depend on the measuring equipment, materials, product’s weight & packing film’ material.

Accuracy

*≤±1%, depending on the measuring equipment & materials.

*≤±1%, ，

Bag size

(L)100-300mm  (W) 70-200mm

Filling Volume

10-1000g

Bag type

Preformed bag: Zipper bag, Stand-up pouch, 3/4-side-seal pouch,  four edge-sealing bag, special bag etc.

Air consumption

0.6m³/min(supply by user)

Power

2.5KW  3P 380V  50/60Hz

Dimension

(L)1900 * (W)1570 * (H)1700

Work flow

Giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product

Applicable scope

1. Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc

.

2. Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer

3. Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc

4. Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste

5. Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc

6. Other bagging materials

Main standard parts

主要标准部件

1.Code printer . PLC control system  PLC  3. Bag opening device 4. Vibration device 5. Cylinder   6. Electromagnetic valve7. Temperature controller  8. Vacuum pump 9. Inverter

10. Output system
