Capping machine

  • 2heads Automatic Capping Machine

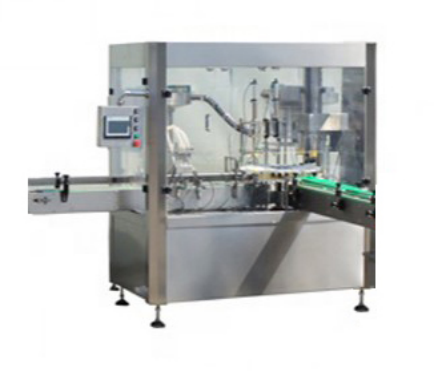

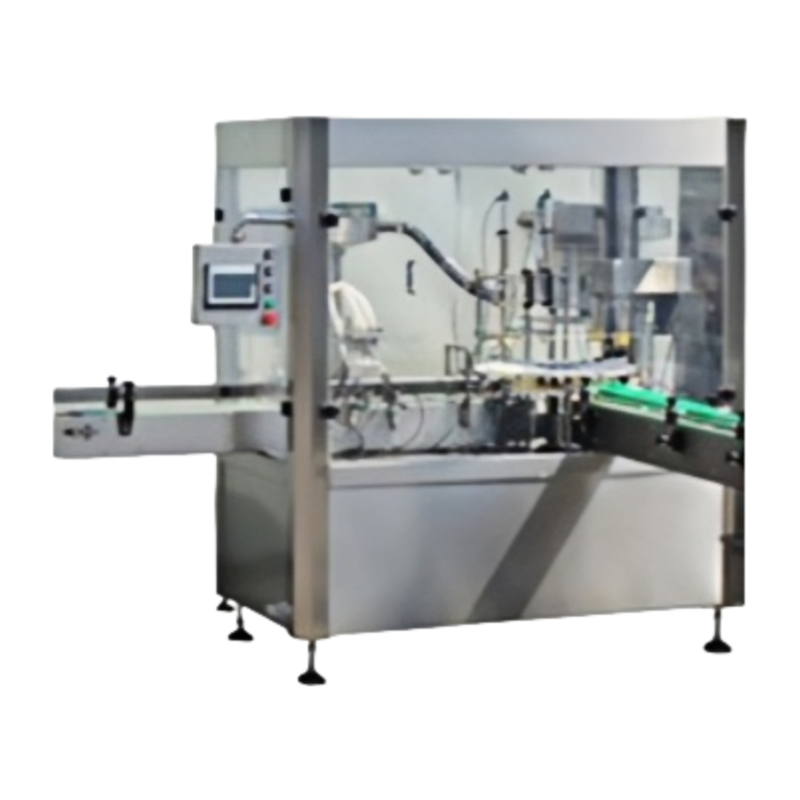

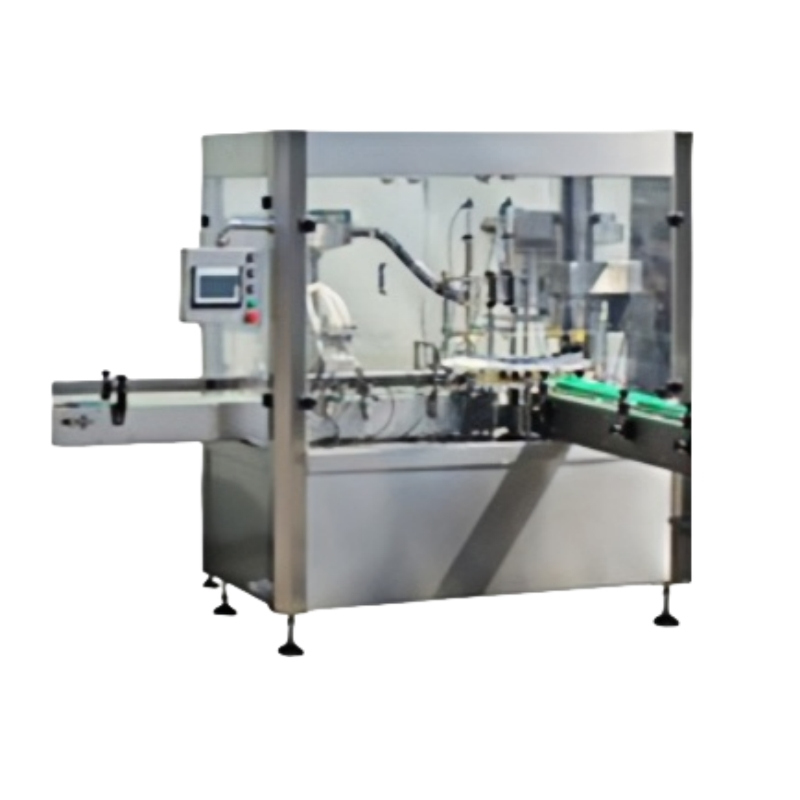

2heads Automatic Capping Machine

2heads Automatic Capping Machine

2heads Automatic Capping Machine



Application: This machine is suitable for automatic screw capping glass bottles and plastic bottles, widely used in medicine,

cosmetic, food, chemical industry, etc.



Performance feature:

1. PLC control system, color touch screen display.

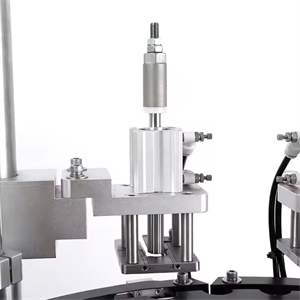

2. This machine adopts mechanical arm to screw cap, equipped with automatic sliding device, to prevent the cap damage.

3. Machine has of no bottle no capping, no cap automatic stopping as protection device.

4. Main electrical elements adopts foreign well-known brand.

5. Machine body and product touching part are made by stainless steel, completely meets GMP requirements.







Technical parameter:



Model

XL-2

Bottle diameter

                25-100mm

Cap diameter

20-120mm

Capacity

30-50 bottles/min

Capping rate

 98%

Power supply

1Ph. 220V, 50/60Hz

Power

 1.7 KW

Net weight

550kg

Overall dimension

  L2400 × W2300 × H1750mm
