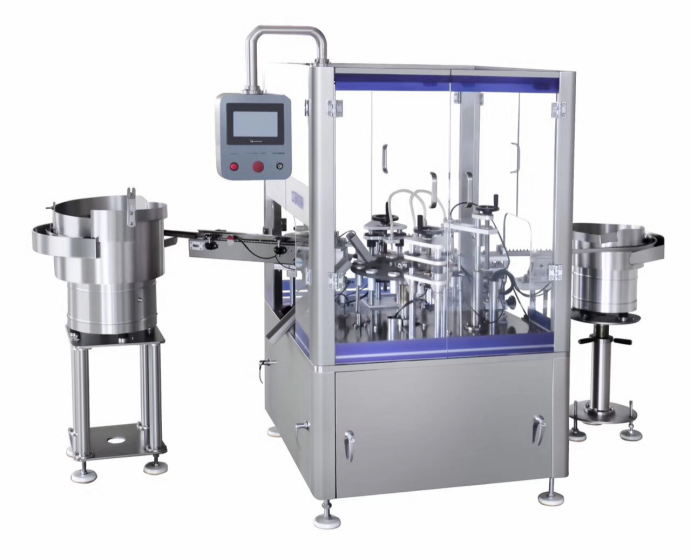

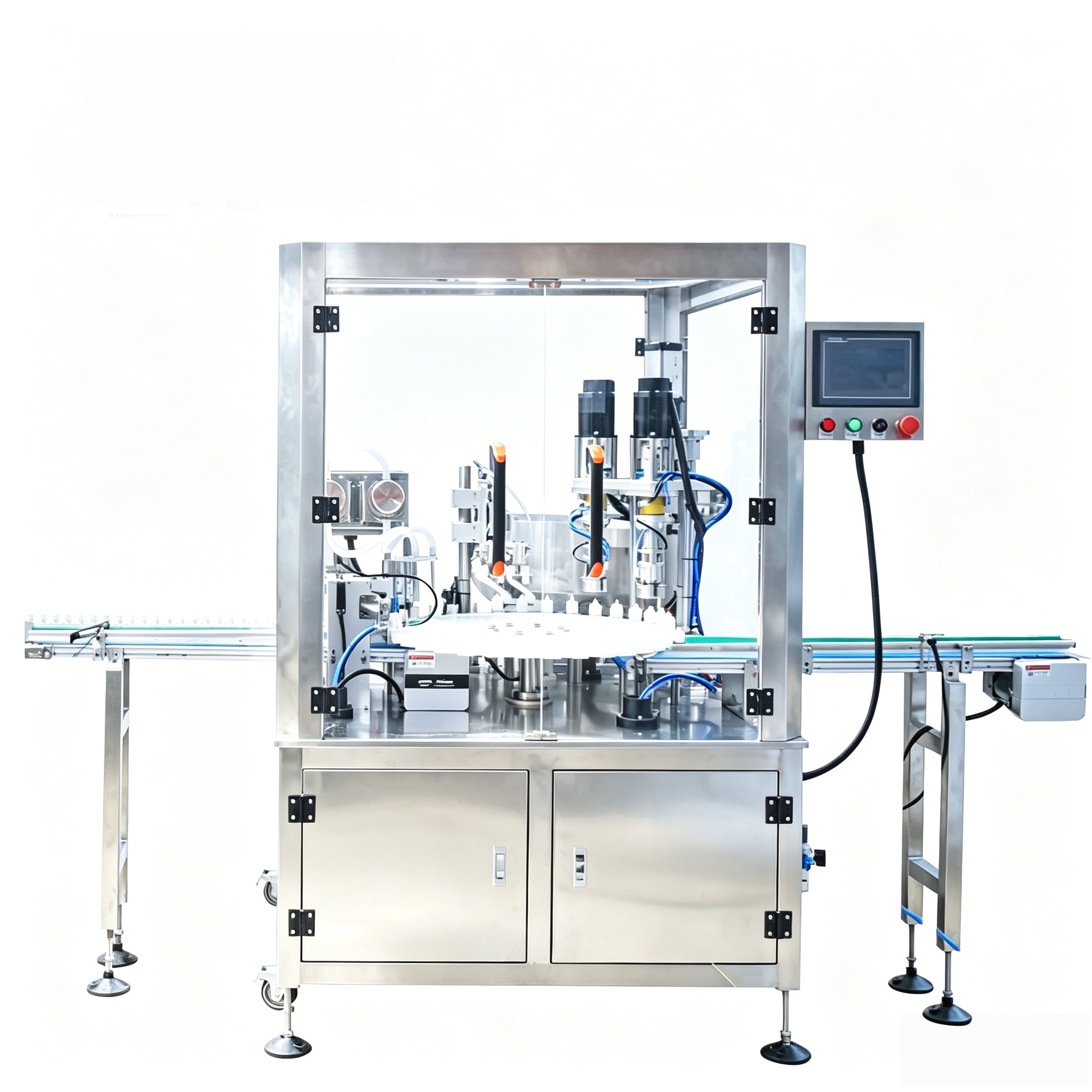

Automatic Filling&Capping Machine
Machine Process:
1,Automatic Servo Motor Filling(4 Head)
2,Automatic Drop Capping(2 Head)
3,Automatic Turn Capping(2 Head)
Technical Parameters:
Model
| XLY |
Voltage | 220V 50/60Hz
|
Power | 1.5KW
|
Filling Heads
| 4 |
Capping Heads
| 2 |
Filling Volume Range
| 10-100ml (Adjustment) |
Sensor
| Leuze |
Touch Screen
| Weinview |
PLC
| Delta |
Capacity
| 2800-3000 Bottles/hour |
Filling Accuracy | 1%
|
Machine size (L *W* H)
| 1600*1500*1700mm |
Weight | 760Kg
|
Package | Export Wooden Case
|
