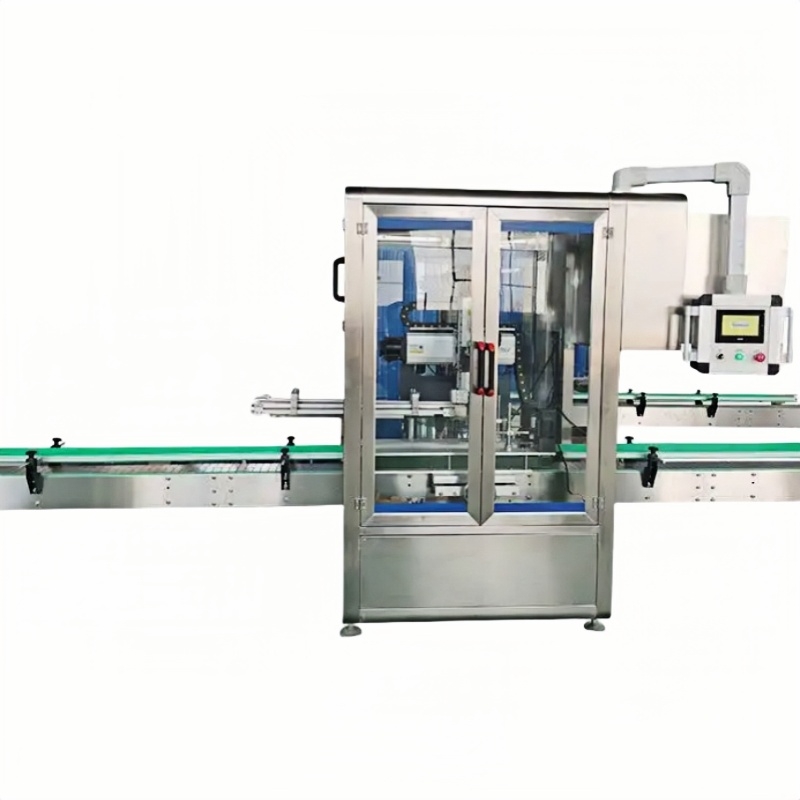

Automatic Mobile High Precision Screwing Plastic Bottle Tracking Capping Machine

1.Equipment Overview

This machine is the latest capping machine carefully designed by our company. With the introduction of foreign advanced capping technology and the in-depth research and development of our technical team, the overall performance of the product has reached the international advanced level, and some of the performance has exceeded the best level of foreign similar products, and has been widely recognized by customers. Using PLC and touch screen automatic control, it has the characteristics of accurate capping, advanced structure, stable operation, low noise, wide range of adjustment, fast production speed, dynamic capping and so on. PLC is equipped with memory function, which can memorize a variety of operating parameters at the same time. The mechanical structure is simple, the space is large, and the safety protection frame is installed to improve the safety performance of the whole machine. The capping head of capping part is equipped with torque effect control system to ensure capping effect and avoid capping damage: capping heads are equipped with clutch device, and the tightness of capping can be adjusted. When the capping is tightened, the clutch on-off which avoid capping damage and prolong the service life of capping head; The speed of bottle feeding, capping, bottle conveying, caps lifting and capping, all can be adjusted respectively in the touch screen, which avoids the phenomenon of bottle pouring and bottle blocking due to the uncoordinated speed, and improves the work efficiency; The material of the bottle clamping part is flexible, which is suitable for most shapes of containers and eliminates the phenomenon of bottle damage; The mechanical cap guide device with high performance and high reliability ensures the smooth cover entry, gentle and no scratch, and ensures the accuracy of caps removal and placement. When the machine start working, the main machine without or with few bottles will not work, and it will work automatically when the working conditions are met; If the bottle is blocked, the main engine will stop automatically and work automatically when the working conditions are met. When there is no caps, the main engine will stop automatically and work automatically when the working conditions are met. All the parts that need to be adjusted for the replacement of the different bottles are equipped with digital display, ruler, scale or special marks. During the design and processing of the main engine, all the edges and corners are polished, and all the moving parts are designed and installed with protective covers, so as to eliminate potential safety hazards and realize safe production without accidents. The gas circuit and circuit of the main engine are standard, and there is no flying wire. With automatic protection function; The equipment is equipped with emergency stop button. An oil-water separator is installed in front of the main inlet pipe to extend the service life of the pneumatic components; The main engine is equipped with air pressure protection alarm device. When the air pressure is too high or too low, the main engine will automatically alarm and shut down (all the above alarms are carried out simultaneously by touch screen display and alarm light sound and light alarm). The main body of the machine is stainless steel environmental protection frame, toughened glass door.

2.Main technical parameters

uCapping head: 1 head uPower supply：AC 220/380V ;50/60HZ uPower：3KW uProduction speed：1800 bottles/hour uSuitable bottle diameter：φ40mm-φ100mm(Customizable) uSuitable cap diameter：φ20mm-φ50mm(Customizable) uWeight：about 800kg uDimension（L*W*H）：1500mm*1300mm*2200mm

3.Introduction of some technology

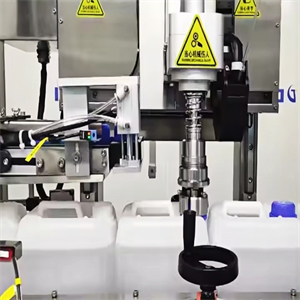

Capping system Servo motor is used to drive the screw cap. The motor spindle is connected with a special clutch to adjust the screw cap torque. The clutch has stable performance and its position is convenient for manual adjustment. It is made of stainless steel. The surface of the parts is treated professionally. The position of the three claws is triangular. There are wear-resistant ribs inside to prevent the metal from directly contacting with the cover and reduce the wear of the caps.

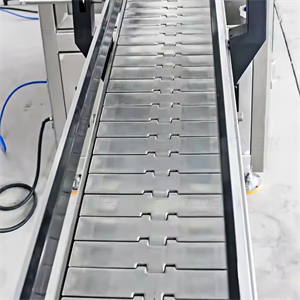

Bottle clamping synchronization system The bottle clamping belt is clamped in the process of bottle capping and plays the role of z-axis positioning. The servo motor controls the speed of bottle clamping and keeps synchronization with the translational motor of bottle capping, so that the gripper can precisely fit with the barrel mouth.

Belt type cap feeding, can be added the bad and crooked cap elimination device.

4.Configuration table
